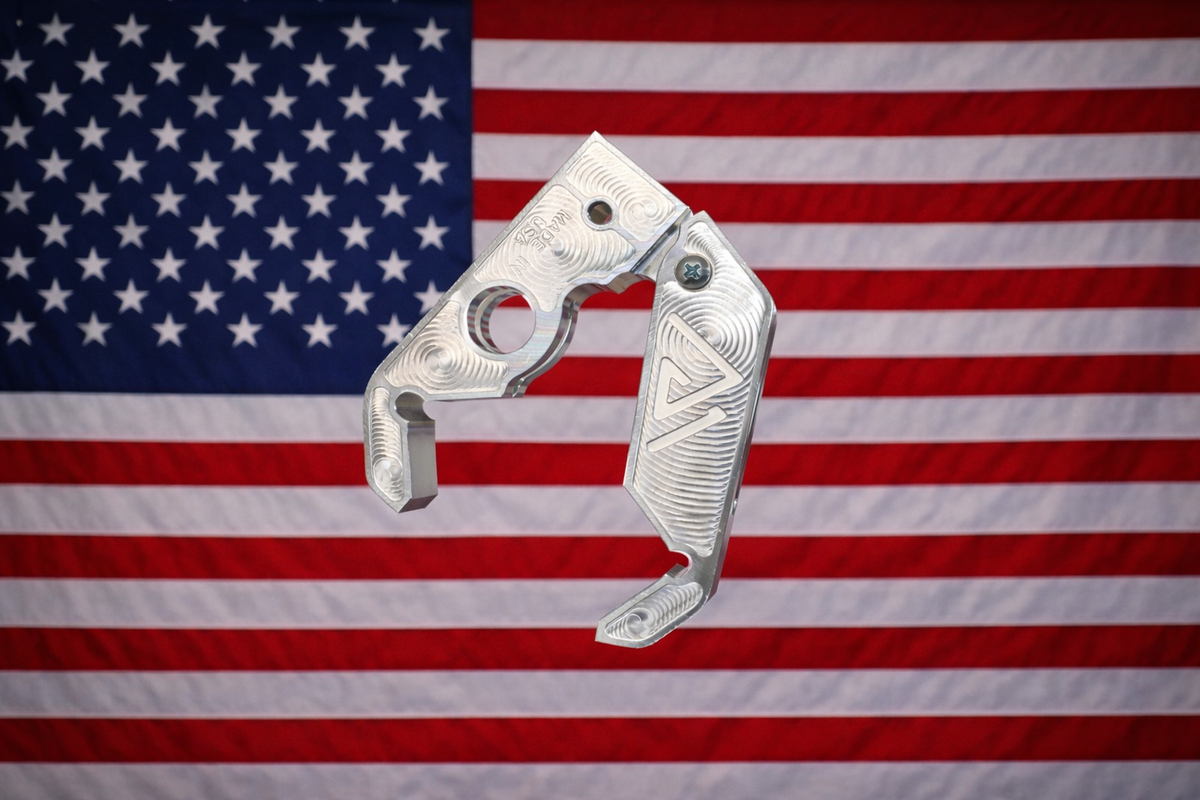

500+ lb of clamping force, machined from billet
Two CNC-machined blocks of 6061 T6 billet aluminum produce 500+ lb of clamping force — enough to lock onto virtually any shape, size, or structure.
Made in USA
Lifetime warranty
CNC machined
Free Shipping

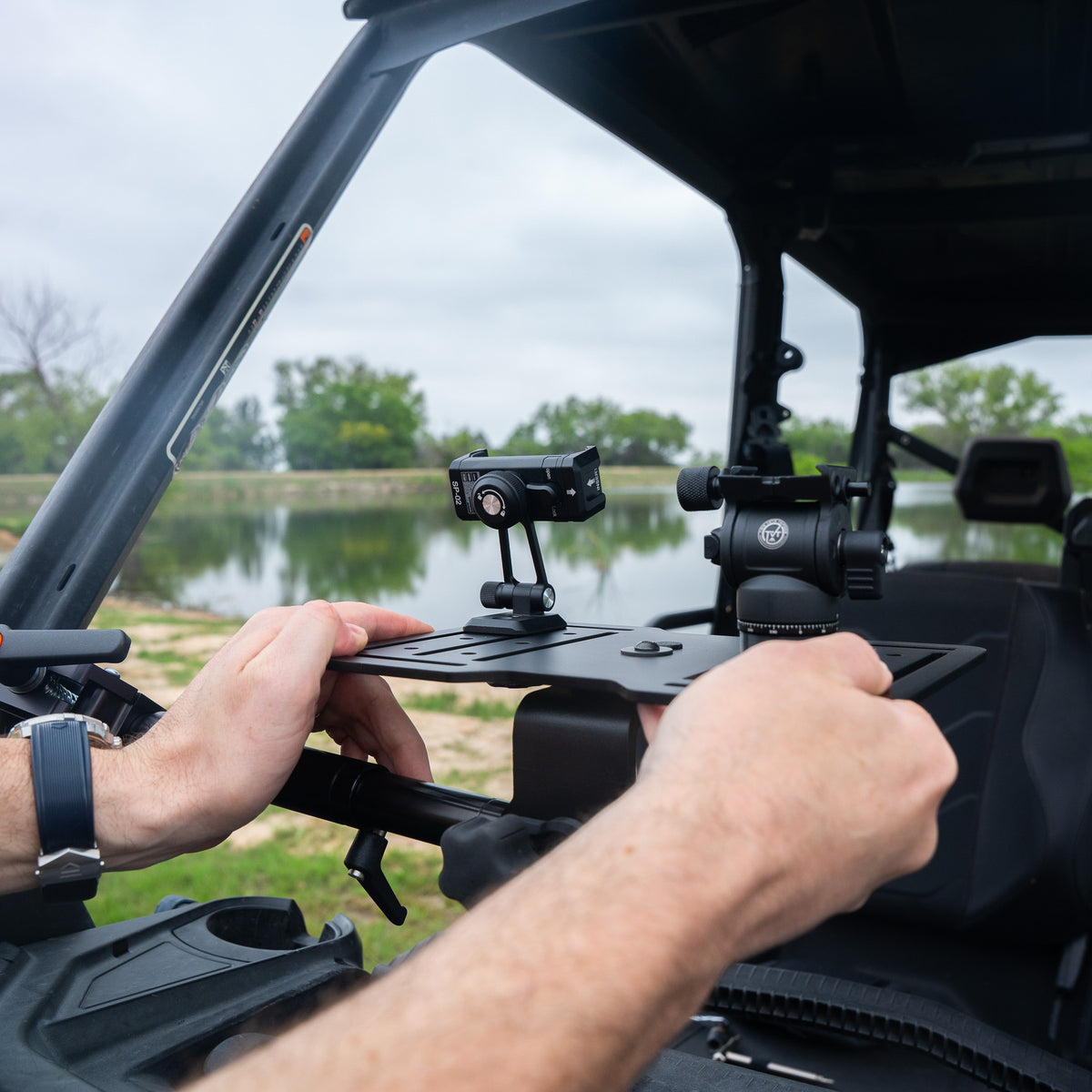

CONNECT DECK
MOUNT ANYTHING. ANYWHERE.
A modular clamp-on multi-mount platform for staging, organizing, and securing your gear. Deck gives you a stable mounting platform without drilling, vehicle-specific brackets, permanent mounts, or a full tripod footprint.
Built to work with optics, cameras, electronics, tools, accessories, and more — giving you a compact platform you can move from vehicle to bench, blind, tailgate, tripod, or field setup. Built to keep your gear organized, accessible, and locked in place through vibration, load, and real-world use.
- 10″ × 6.5″ Multi-mount platform
- Ten 1/4″ slots + twelve 3/8″ through-holes
- Multi-axis configuration
- 500+ lbs of clamping force
- 6061-T6 billet aluminum
One base. More gear. Built around the job.
Two offset positions. Every angle you need.
Two offset bar mounting holes — one on the bottom, one on the rear. Swap between them for horizontal or vertical mounting, or to find the right angle.
Precision replaces brute force
Tight-tolerance CNC aluminum bar (±.002″) with full surface contact when locked. Adjusts the unit's total offset from your mounting structure between 8.5″ and 17.5″, depending on configuration. Rotates 360° at the connection points to orient your setup exactly where you need it.
Stays snug under recoil and vibration.
Custom TPU dampeners sit between the clamp and knobs, allowing ~0.005″ of micro-play that absorbs vibration and recoil — keeping the Hub snug over time.
One shim, three jobs
Stores around the offset bar, drops into either jaw to clamp flat surfaces at any thickness, or shims smaller and odd-shaped structures.
Real leverage in awkward positions
Oversized 3/8″ ratcheting handle on the main clamp — designed for high-leverage tightening when you're reaching around a roll cage or wedged into a blind. Sized to never compete with the smaller adjustment knobs elsewhere on the unit. A smaller version of this handle also ships on the Pro Bar and underneath the Connect Deck.

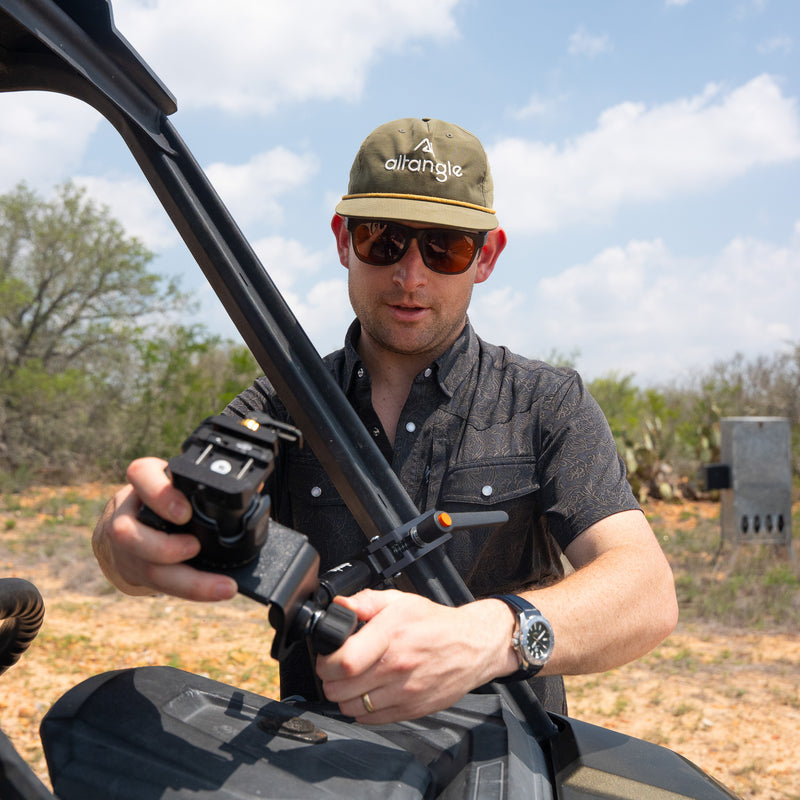

Adjust 290°, then lock it dead
L-shaped bracket made from quarter-inch 5052 aluminum with a durable powder-coated finish. The primary pivot has its own friction resistance for fine positioning; the secondary lockout drops into a circular notch for zero-movement hold across roughly 290° of rotation. A 3/8″ through-hole on top accepts both 1/4″ and 3/8″ mounting hardware.
Ten slots + twelve through-holes for the full loadout
1/8″ powder-coated aluminum plate, engineered to balance rigidity and weight. Ten 1/4″ slots run along the platform for precision-positioned optics, cameras, rangefinders, and electronics. Twelve 3/8″ through-holes anchor heavier hardware and custom buildouts. One surface, every piece of gear staged at once.
180° locked, 360° with a flip
The Deck mounts to the pivot bracket via a 3/8″ through-hole — same circular-notch lockout as the Hub bracket, with roughly 180° of locked rotation. Flip the bracket to reposition the plate and you get full 360° orientation, locked in 180° increments. A PETG spacer underneath dampens vibration and keeps the connection tight.
How it works

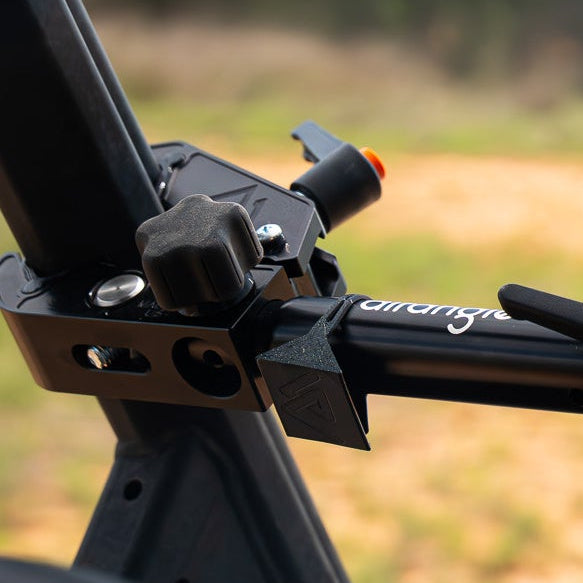

Clamp it
Mount it

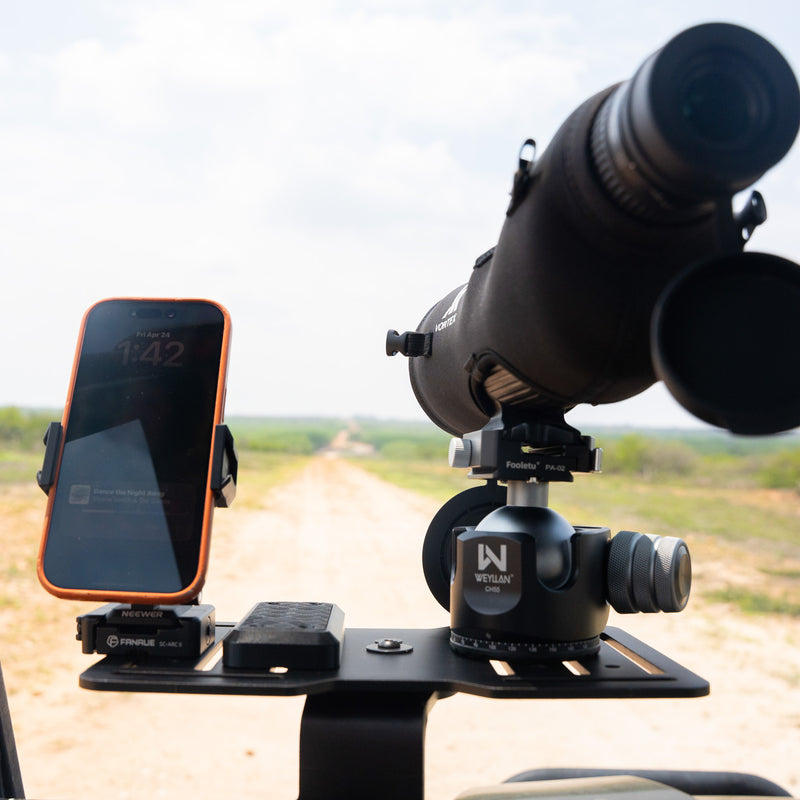

Go
Built for Where You Actually Need It
One platform. Real environments. The structures already around you.
One Mount, Every Setup
The mounting platform up top stays the same — how you outfit it is up to you. Drop on an Arca ballhead, a saddle rest, or a video head. Whatever the day calls for, your gear stays locked in.
Glass For Hours, Not Minutes
Locked-in optics platform that holds steady through the long sit. Spotter, binoculars, or long-lens camera — same clamp, same hold, anywhere you can reach.
Locked-In, Not Just Steady
Range-bench stability from your roll bar, vehicle rack, or blind rail. With 500+ lb of clamping force, the Connect becomes part of the structure — no bolts, no tedious setup. Stays where you put it under recoil, vibration, and real-world use.
Dedication without limitations
No bolts. No vehicle-specific kits. No tedious assembly. Open the jaws, clamp on, lock in. You're using your gear before they've opened their tripod.
Fits the Gear You Already Own
The multi-mount platform features ten 1/4″ slots and twelve 3/8″ through-holes, so you can bring whatever mounting system you already run.

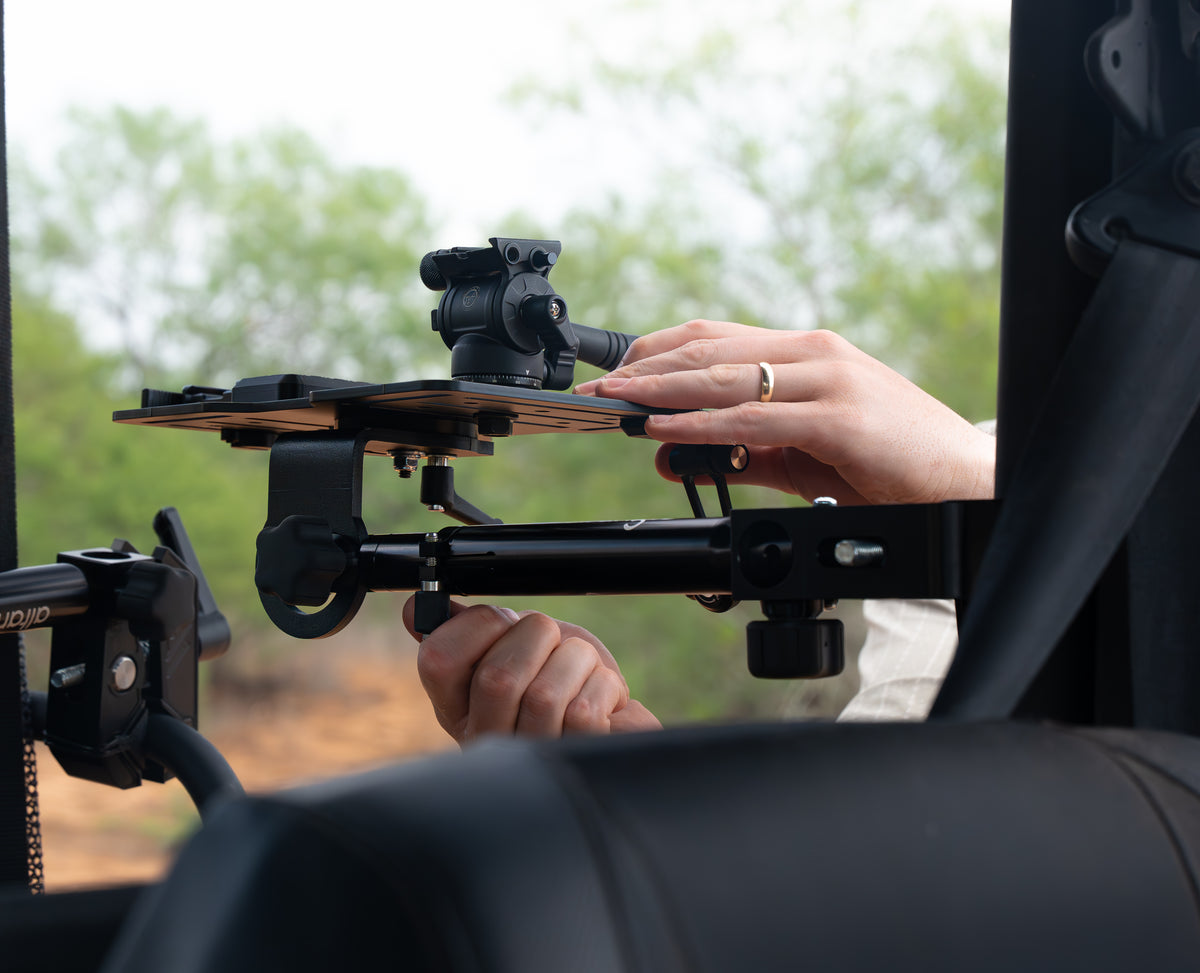

Your Tripod Head, Mounted.
Ballhead, panhead, fluid head — if it has a thread on the bottom, it mounts directly to the deck. Your existing clamps and quick-releases stay on top of the head where they already live; only the base changes.
Your Setup, Locked In.
Whatever system you prefer to lock down your rifle threads or mounts onto the Hub's platform. No proprietary parts to buy.
Anything Threaded, Bolted Down.
Spotting scopes, rangefinders, action cameras, video heads — anything with 3/8-16 or 1/4-20 thread mounts directly to the platform. No Proprietary Part Limitations.
Where Tripods Stop, the Connect Begins
Tripods have their place — but not every environment lends itself to wrestling with legs and the footprint they require.

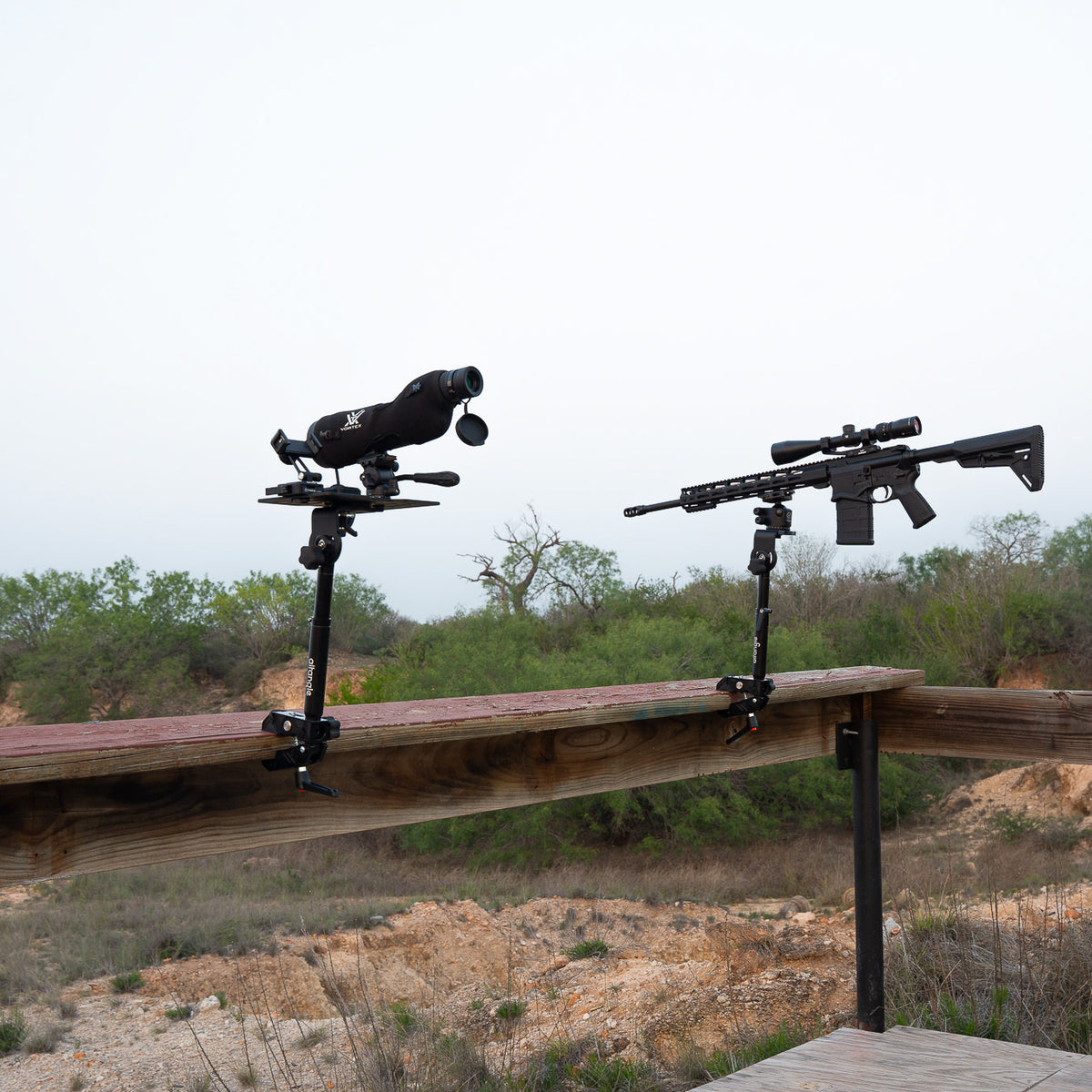

No Legs in the Way
No tripod sprawl. Connect clamps to what's already there — your vehicle, your bench, your blind rail. Less setup time. Less ground to lose.

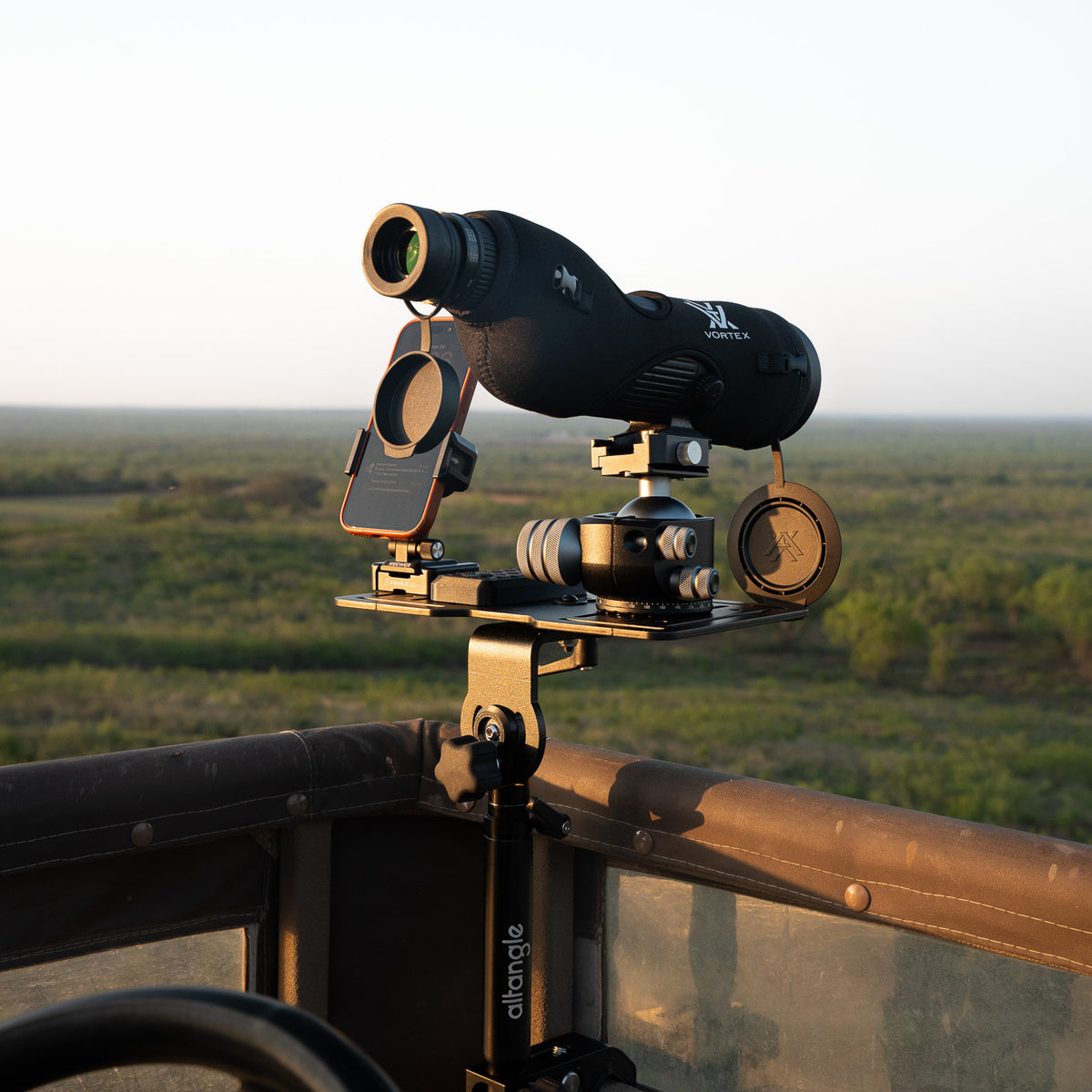

One Mount, Whole Loadout
Tripods hold one thing at a time. The Deck holds your spotter, your rangefinder, your phone, your rifle clamp — all at once, all in the spots you want them. Stop juggling accessories.
Smaller Footprint Than Your Bag
Fits in your range bag. Doesn't bulk up your kit. Travels with the gear, deploys when you need it, packs away when you don't.

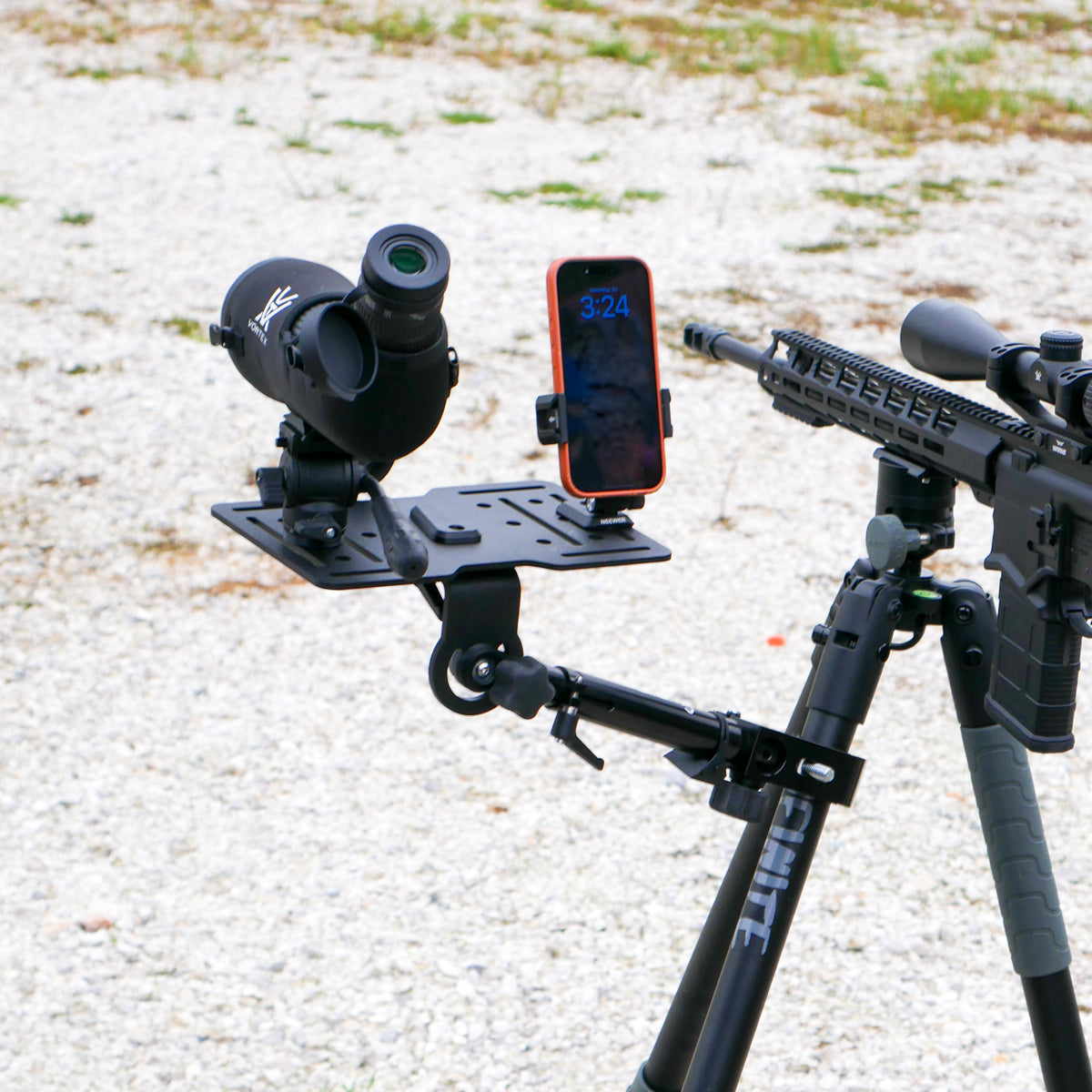

Not Anti-Tripod
For some setups, a tripod is still the right tool — and Connect clamps onto a tripod leg when it's the right call. The point isn't to replace your tripod. It's to give you a mount that goes where your tripod can't.
Why It Works
Six things it does that other mounts don't.
Multi-Mount Surface
Ten 1/4″ slots and twelve 3/8″ through-holes give you simultaneous mounting positions for optics, cameras, rangefinders, accessories, and heavier hardware. One platform handles your full loadout.

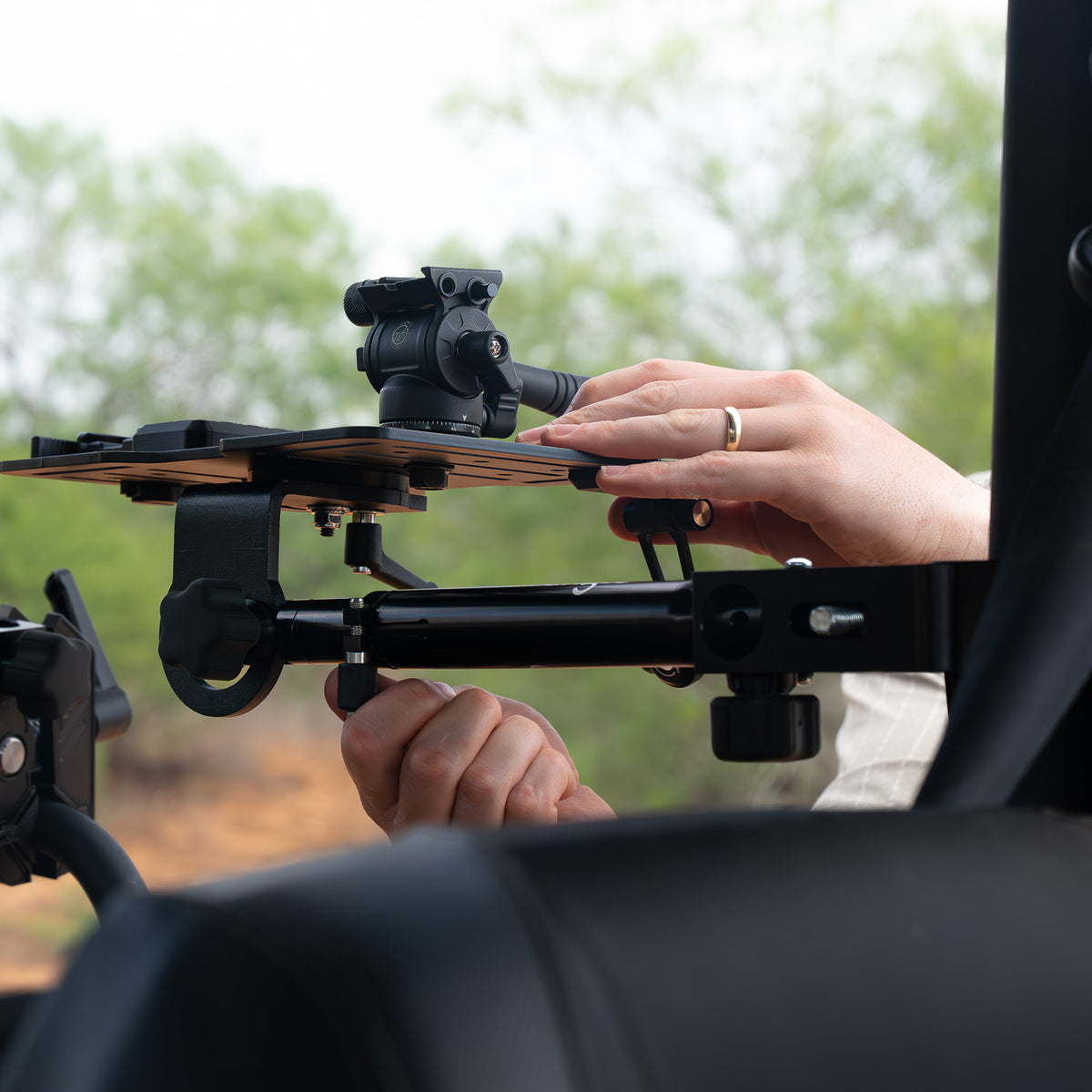

Dual-Stage Hold
Primary positioning plus a secondary lockout that holds with hardware. Doesn't slip under recoil, vibration, or repeated load.

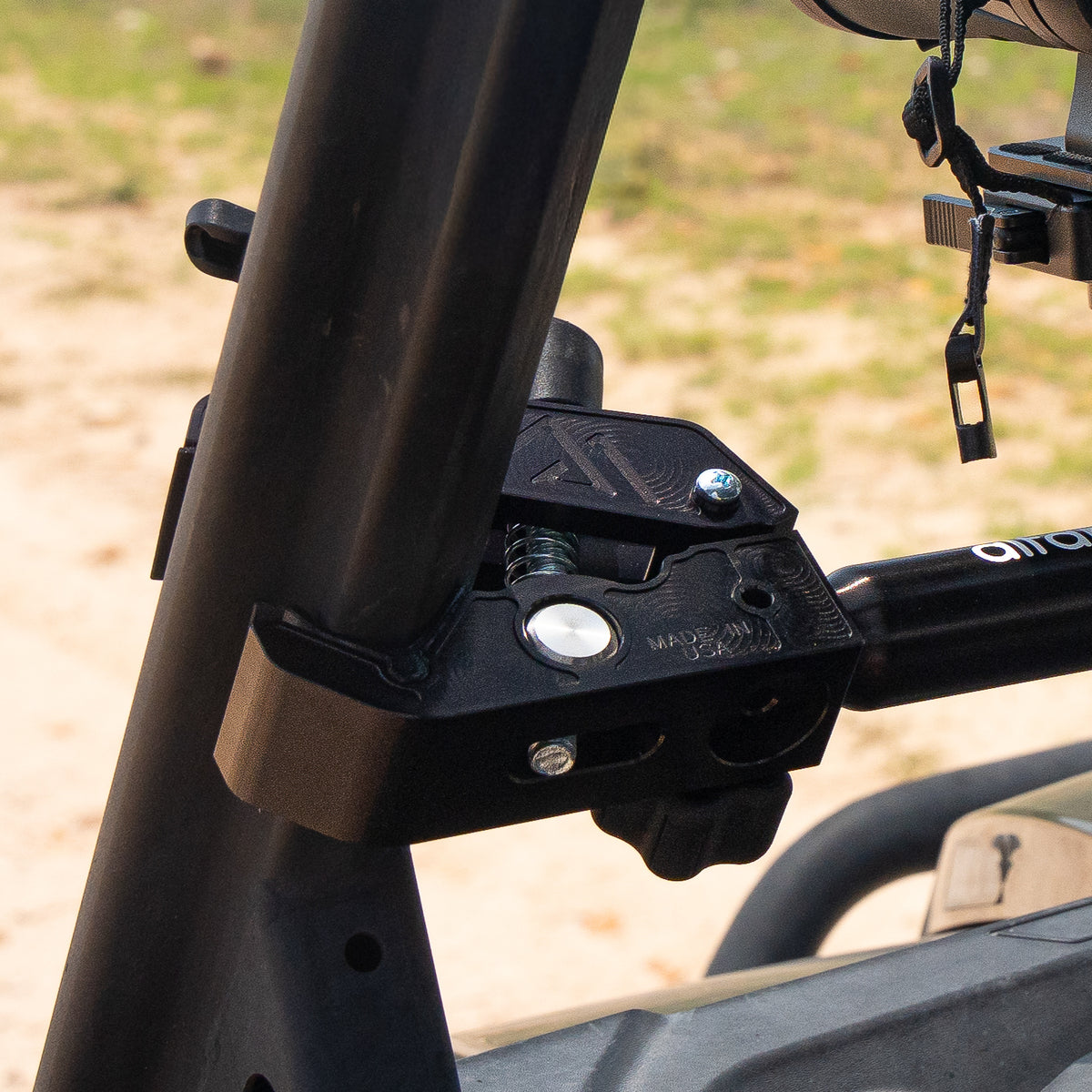

Clamps Anything
Round 0.5–2.5", square or rectangular 0.5–2.7", flat up to 2.7". Roll bars, vehicle racks, blind rails, range benches, tripod legs, and more.

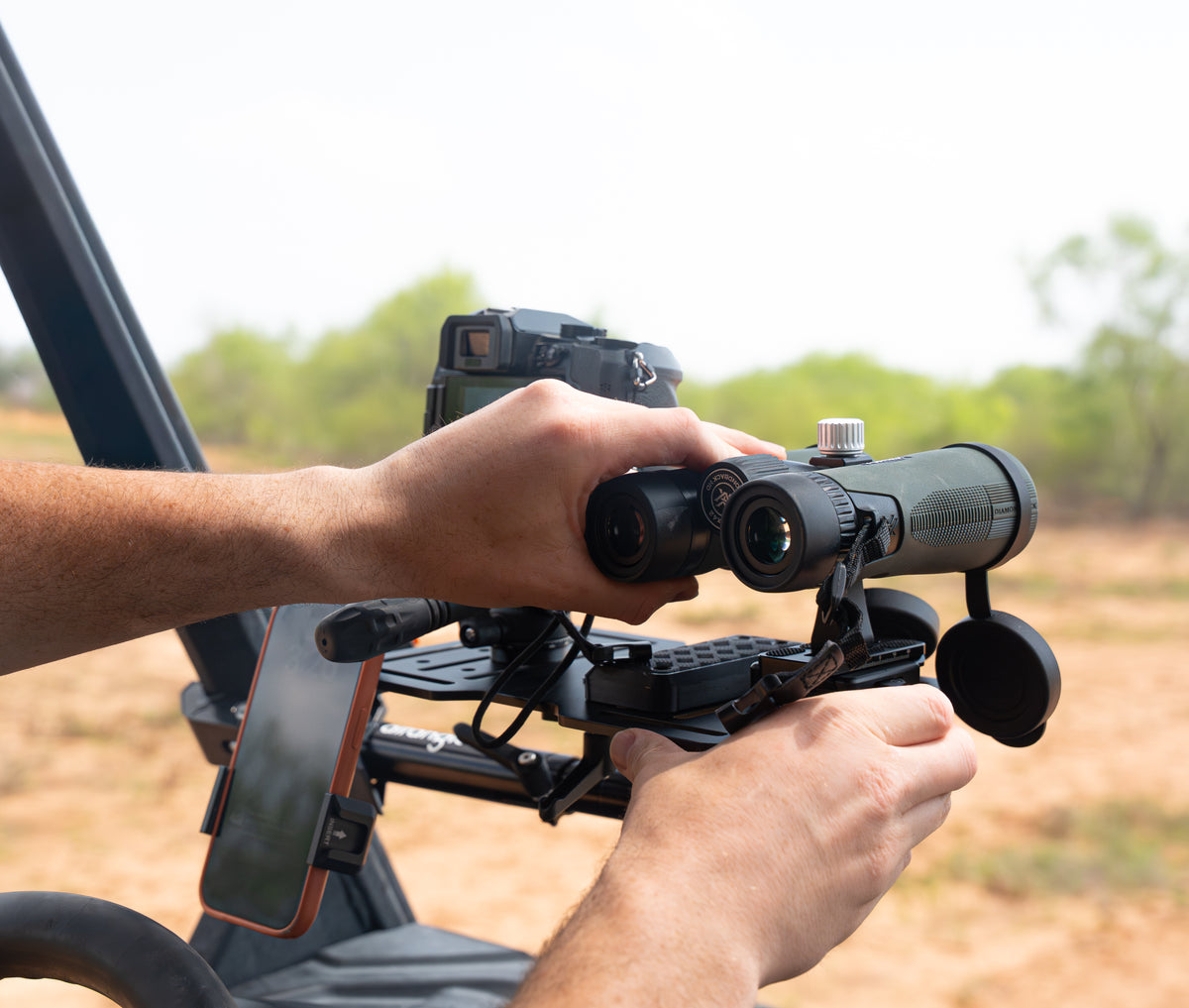

Quick Mount
On in seconds, no tools. Open the jaws, clamp on, lock the handle. Off the same way.
Replaceable Parts, Every Single One
From hardware to TPU jaw inserts and everything in between — built to be maintained, not replaced.
Made in the USA
CNC-machined in the USA from 6061 T6 billet aluminum. Assembled and shipped from our headquarters in Bentonville, Arkansas. Lifetime warranty.
Why It's Built This Way
Why Our Clamp Works
- CNC-machined from solid blocks of 6061 aluminum
- No welds, cast points, or weak joints
- V-shaped jaws create opposing force vectors — not just pressure
- Strong hold even with partial contact
Translation: works where other clamps fail.
Precision Fit & Stability
- Tight-tolerance telescoping bar (±.002")
- Full surface contact when locked — not a single pinch point
- Requires less force to secure
Translation: precision replaces brute force.
Built to Stay Tight Over Time
- TPU jaw inserts absorb vibration and recoil
- PETG interface pad reduces fastener loosening
- Designed for repeated real-world use
Translation: not just tight — stays tight.
Hardware That Matters
- The clamps oversized 3/8" barrel nut for deep thread engagement
- Glass-filled nylon ratcheting handle for real leverage in awkward positions
- Zinc-plated rod paired with stainless barrel nut to prevent galling and seizing under repeated load
Translation: the parts most clamps cut corners on.

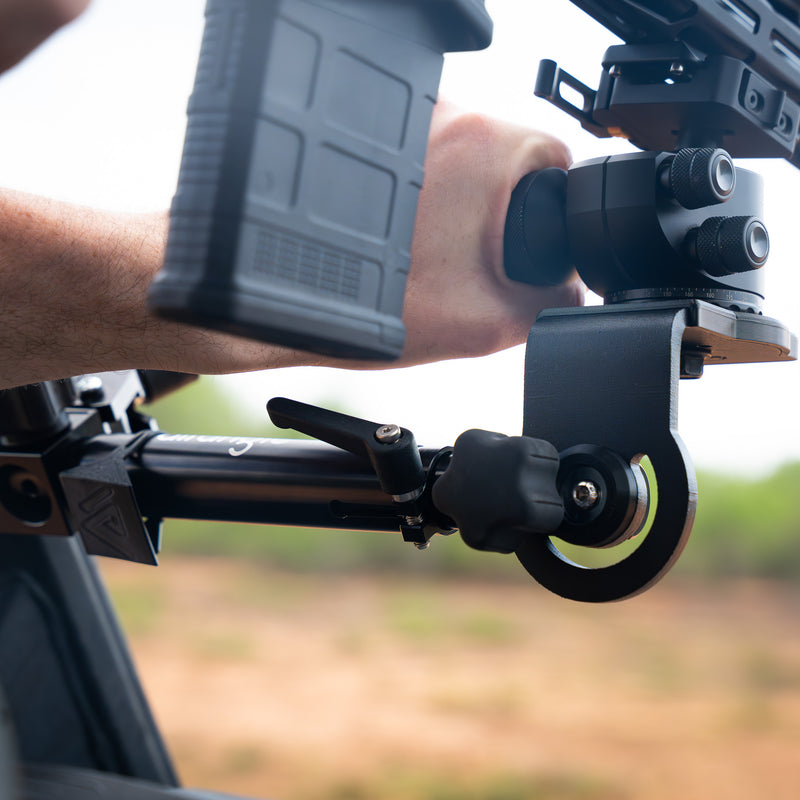

Pivot System Explained
- Primary center pivot: controlled movement for positioning
- Secondary lockout: zero movement once set
Translation: adjust when you need to. Lock when it matters.
Built for Long-Term Ownership
- Replaceable components — every single one
- In-house parts support, USA-stocked
- Lifetime warranty on Connect
Translation: built to be maintained, not replaced.
Why the Multi-Mount Plate Works
- 1/8″ powder-coated aluminum — chosen for the weight-to-rigidity balance multi-mount surfaces need
- Ten 1/4-20 slots run lengthwise for precision-positioned optics, cameras, rangefinders, and electronics
- Twelve 3/8-16 through-holes anchor heavier hardware and accessories that need a fixed position
- Slots vs. holes: slots let you slide; holes lock in place. Both standards, no proprietary thread sizes.
Translation: one base, every piece of gear at once.

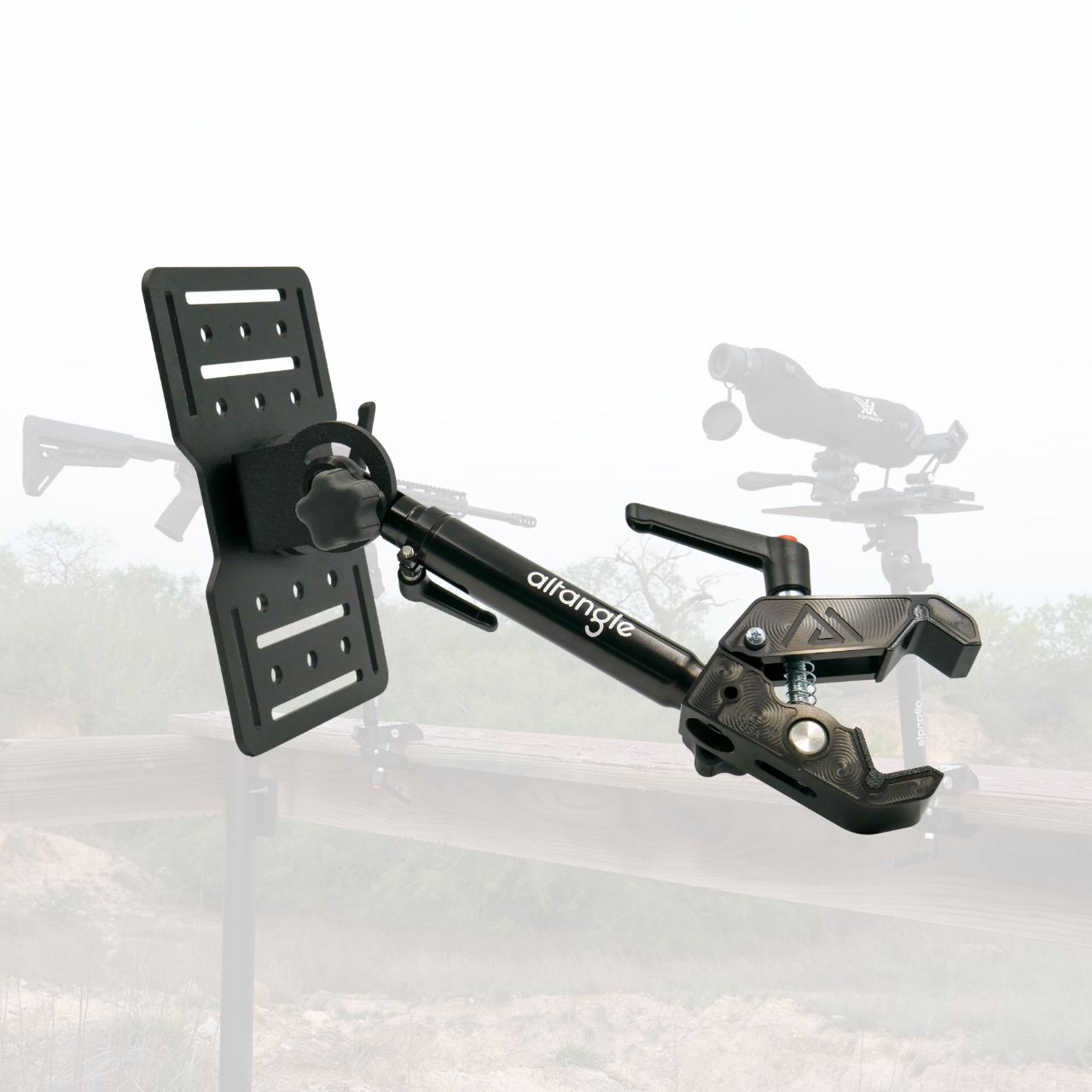

Should I Get the Hub Instead?
For the heaviest precision-rifle setups, the Connect Hub's single-mount design remains the more rigid option. The Deck trades a small amount of flex for a larger multi-mount surface that keeps your working setup organized in one place.
Use the Hub when one piece of gear needs zero-movement hold (heavy rifle, long-lens camera at full extension, etc.). Use the Deck when you're staging your full loadout and want everything in one place.
Or run both for ultimate versatility — the Hub for the rifle, the Deck for everything else.
Translation: the honest comparison.
Adjust It. Then Lock It.
Multi-axis configuration gives you four adjustment points beyond the gear you mount on top — offset bar mount position, telescoping length, 360° rotation, and the locking pivot bracket. Slightly loosen each to find your angle and offset, dial in your setup, and lock them all back down. With the Deck, you've also got the plate above that for fine-positioning each piece of gear along the slots.
Loosen, position, lock — and it stays where you put it.
Built By People Who Use It
We didn't outsource the design and we didn't water it down. The Connect got machined, broken, redesigned, and re-tested in our shop shop in Bentonville and in the field where it matters most. Every part is replaceable. Every spec is what we'd want on our own rigs. That's the whole pitch.
— Squires (Founder)
Altangle Tools • Bentonville, Arkansas
Connect Deck
$ 6,227.00
A modular clamp-on multi-mount platform for staging, organizing, and securing your gear.
Limited quantities availableShips on or before June 30, 2026
Pre-order now to reserve yours from this production run.
We’ve launched every Altangle product through pre-orders, and it’s helped us build responsibly while keeping production close to demand. Deck is currently in production, and ordering today guarantees your unit from this batch before the next run opens with a later ship date.
Every Connect product is built in America and assembled in-house at our shop in Bentonville, Arkansas. As your batch moves through production, we’ll keep you updated with order confirmation, shop updates, and tracking as soon as it ships.
If anything changes, you’ll hear it from us first with a clear reason and updated timeline. And if you change your mind before your order ships, you can cancel anytime — no questions asked.
Built right. Shipped from our shop. Worth the wait.
Build It Out Compatible accessories for your Connect
-
Tricer-LP Pan Head + $ 3,908.00
-
Tricer-AC Arca Clamp + $ 803.00
-
Tricer-GO Quick Release Arca + $ 1,160.00
-
Tricer-KS Phone Clamp + $ 875.00
-
Tricer-GC Gun Clamp + $ 2,944.00
-
Tricer-AK Ball Head + $ 3,908.00
-
Tricer-DH Ball Head + $ 7,119.00
Scroll for more
BUNDLE & SAVESave up to $80
Swap attachments to build any setup you need. Choose from the eligible Altangle-made products or curated bundles below and save 10% when you spend $450+.
Deck Attachment
$ 2,587.00
Aim Attachment
$ 1,338.00
Hub Attachment
$ 1,338.00
Clamp Attachment
$ 3,301.00
Connect Deck
$ 6,227.00
Connect Hub
$ 5,085.00
Connect Pro
$ 6,227.00
Connect Aim
$ 5,085.00
Pro Bar
$ 1,160.00
Connect Air
$ 3,301.00
Connect Bike
$ 6,227.00
LIFETIME WARRANTY
FREE & FAST SHIPPING
30 DAY MONEY BACK GUARANTEE
Buy it, try it, and send it back if it's not a fit. We're confident in our products, but given the versatility, the best way to determine its value to you is putting it to use and deciding for yourself. That's why we offer flexible returns.
QUESTIONS? YOU CAN CALL US
We're a small team, and you'll always talk to one of us directly. Email anytime, or call the number included with your order.
Explore other configurations
Features
CNC machined aluminum
Adjustable on every axis.
Locks on with 500+ lbs of clamping force
Capable of supporting 55+ lbs
Recommended load varies by application and setup.
6061 T6 billet aluminum, anodized
Fits any side-by-side or ATV
Compatible with all major UTV and ATV manufacturers: Polaris, Can-Am, Honda, Yamaha, Kawasaki, and more. *See compatibility drop down below for more details.
What's in the box
- Connect Deck (Clamp + Pro Bar + Deck Attachment)
- Flat Mount Insert
- NOT INCLUDED: Ball Head & other mounting accessories.
