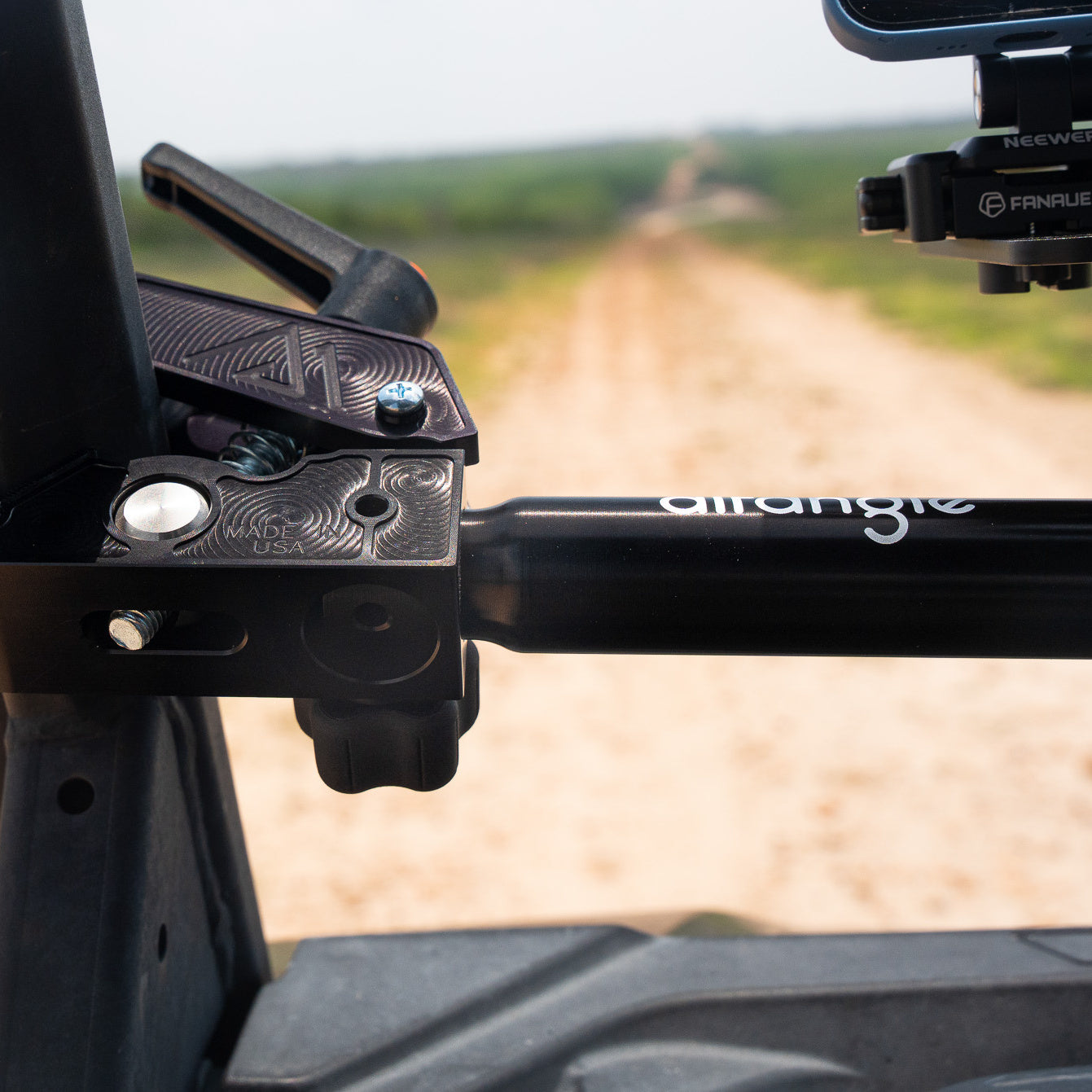

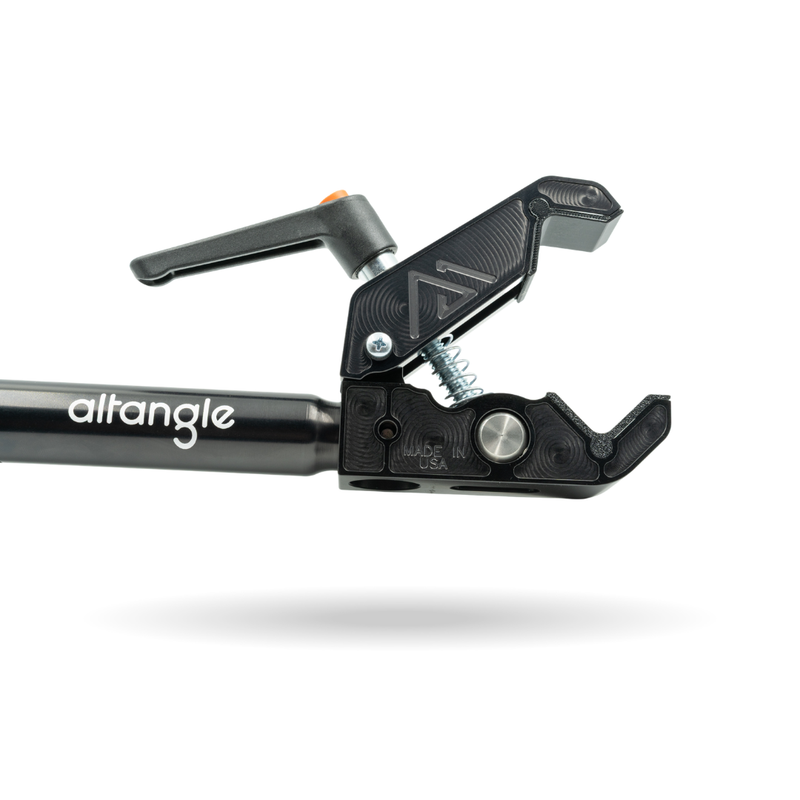

500+ lb of clamping force, machined from billet
Two CNC-machined blocks of 6061 T6 billet aluminum produce 500+ lb of clamping force — enough to lock onto virtually any shape, size, or structure.

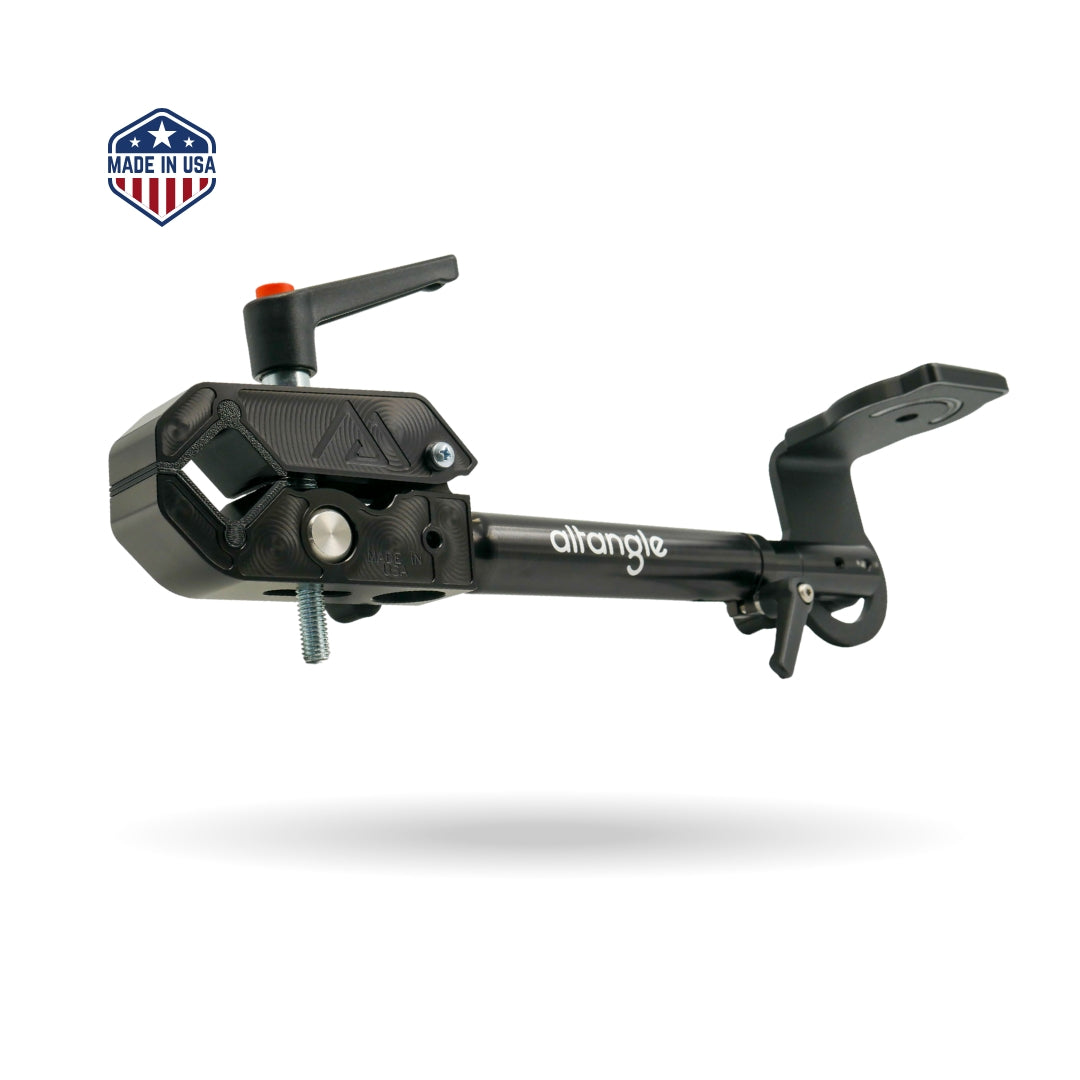

Connect Hub
£220.00
A modular clamp-on shooting and glassing platform. Built to work with common tripod accessories:…Show less
A modular clamp-on shooting and glassing platform. Built to work with common tripod accessories: Ball-Heads, Pan-Heads, Saddle Mounts, Arca-Swiss setups, and more.
Limited quantities availableShips on or before June 30, 2026
Pre-order now to reserve yours from this production run.
We’ve launched every Altangle product through pre-orders, and it’s helped us build responsibly while keeping production close to demand. Deck is currently in production, and ordering today guarantees your unit from this batch before the next run opens with a later ship date.
Every Connect product is built in America and assembled in-house at our shop in Bentonville, Arkansas. As your batch moves through production, we’ll keep you updated with order confirmation, shop updates, and tracking as soon as it ships.
If anything changes, you’ll hear it from us first with a clear reason and updated timeline. And if you change your mind before your order ships, you can cancel anytime — no questions asked.
Built right. Shipped from our shop. Worth the wait.
Build It Out Compatible accessories for your Connect.
-
Tricer-DH Ball Head + £308.00
-
Tricer-AK Ball Head + £169.00
Scroll for more
BUNDLE & SAVESpend $450 get 10% off
Swap attachments to build any setup you need. Choose from the eligible Altangle-made products or curated bundles below and save 10% when you spend $450+.
Hub Attachment
£58.00
Deck Attachment
£112.00
Aim Attachment
£58.00
Clamp Attachment
£143.00
LIFETIME WARRANTY
FREE & FAST SHIPPING
30 DAY MONEY BACK GUARANTEE
Buy it, try it, and send it back if it's not a fit. We're confident in our products, but given the versatility, the best way to determine its value to you is putting it to use and deciding for yourself. That's why we offer flexible returns.
QUESTIONS? YOU CAN CALL US
We're a small team, and you'll always talk to one of us directly. Email anytime, or call the number included with your order.
Explore other configurations
Specifications
CNC machined aluminum
Adjustable on every axis.
Locks on with 500+ lbs of clamping force
Capable of supporting 55+ lbs
Recommended load varies by application and setup.
6061 T6 billet aluminum, anodized
Fits any side-by-side or ATV
Compatible with all major UTV and ATV manufacturers: Polaris, Can-Am, Honda, Yamaha, Kawasaki, and more. *See compatibility drop down below for more details.
What's in the box
- Connect Hub (Clamp + Pro Bar + Hub Attachment)
- Flat Mount Insert
- 3/8 Flange Head Screw
- NOT INCLUDED: Ball Head & other mounting accessories.

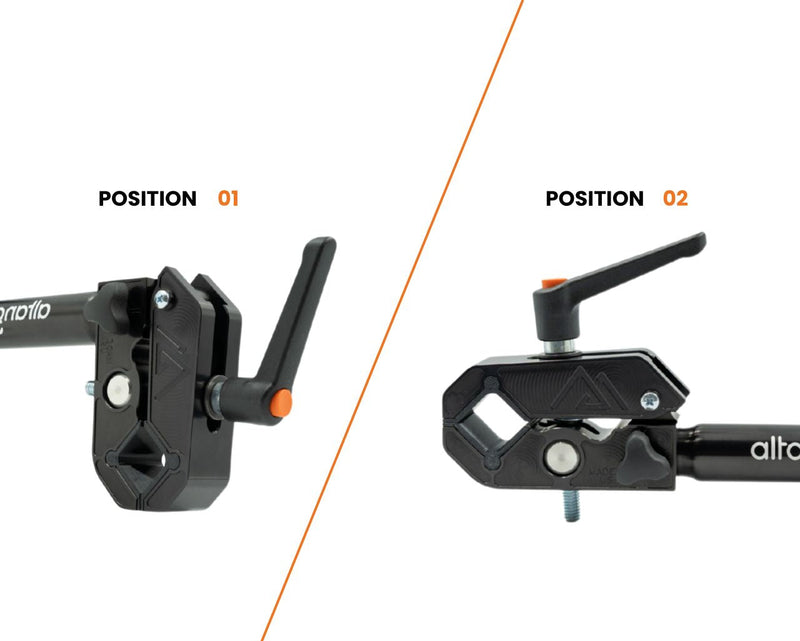

Two offset positions. Every angle you need.

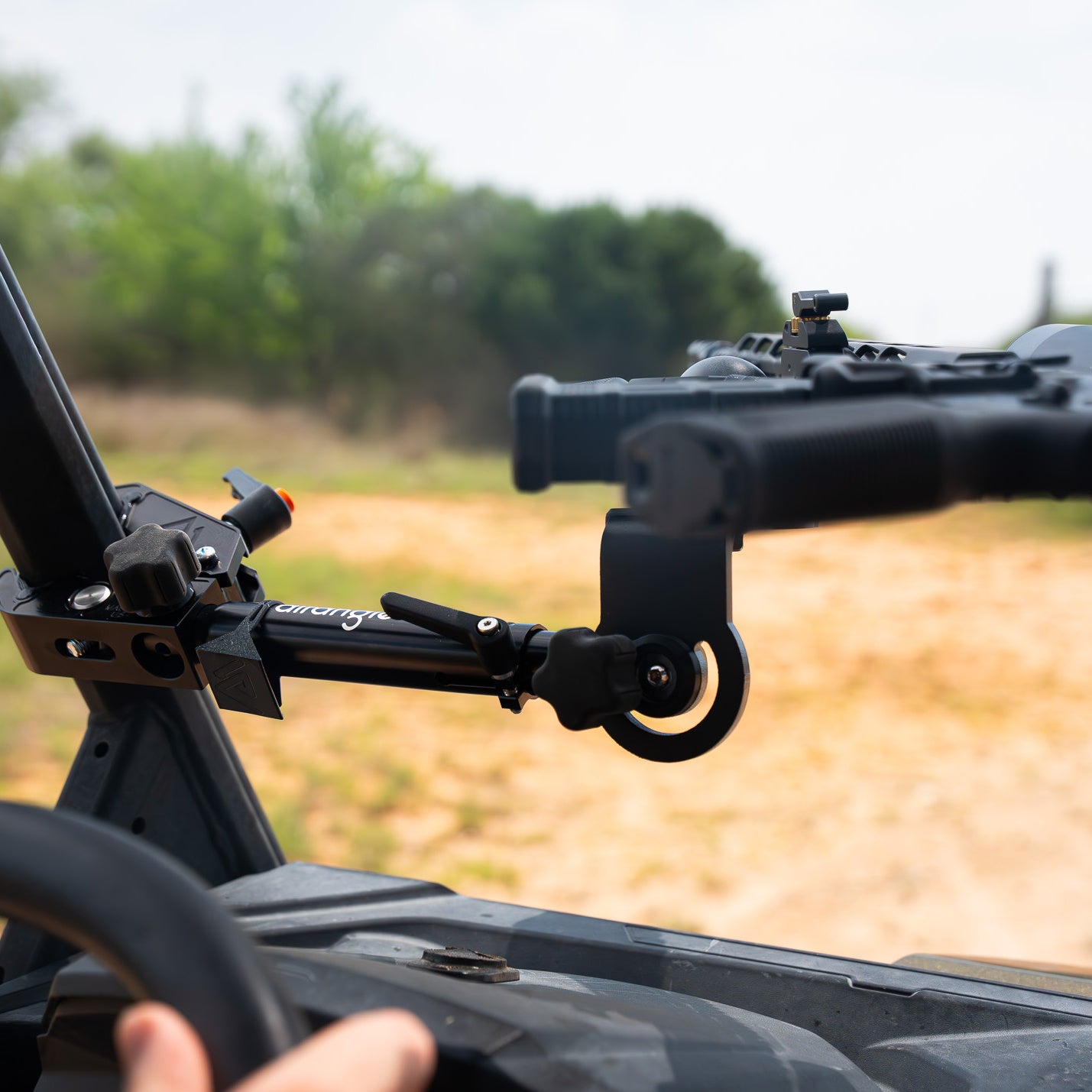

Two offset bar mounting holes — one on the bottom, one on the rear. Swap between them for horizontal or vertical mounting, or to find the right angle.
Precision replaces brute force

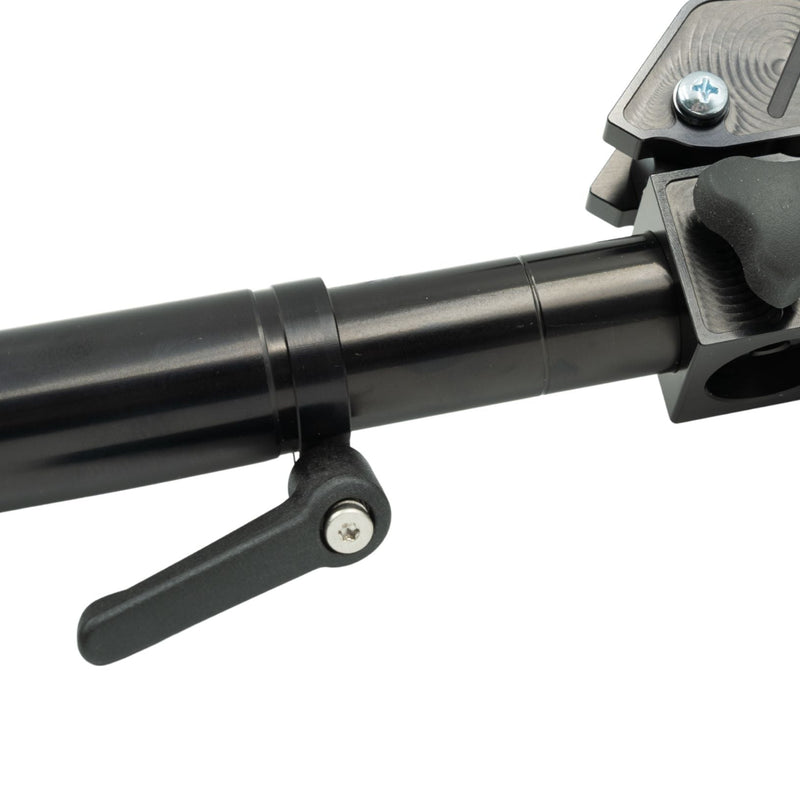

Tight-tolerance CNC aluminum bar (±.002″) with full surface contact when locked. Adjusts the unit's total offset from your mounting structure between 8.5″ and 17.5″, depending on configuration. Rotates 360° at the connection points to orient your setup exactly where you need it.
Stays snug under recoil and vibration.

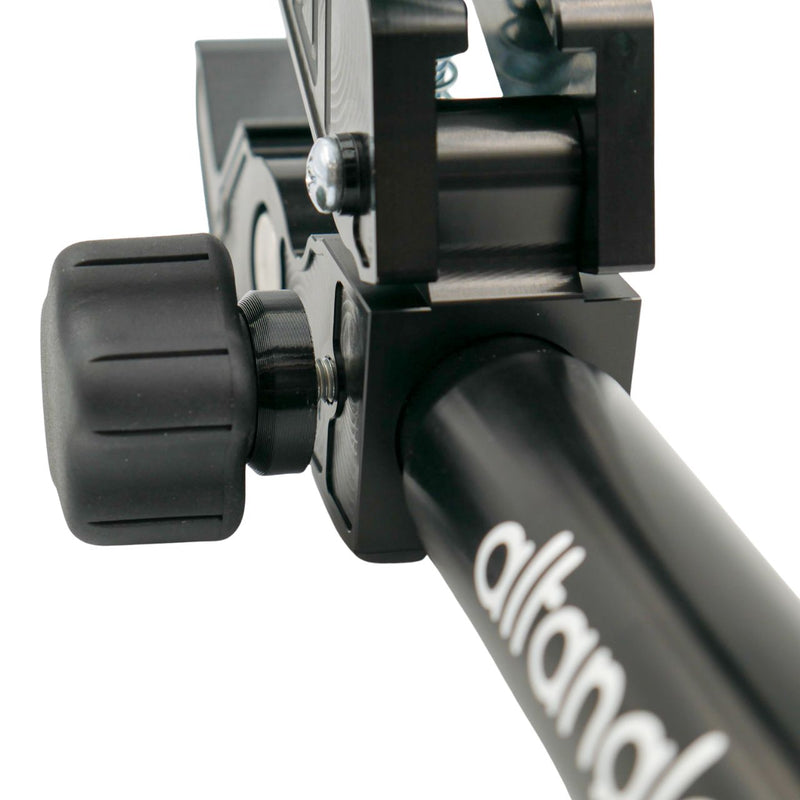

Custom TPU dampeners sit between the clamp and knobs, allowing ~0.005″ of micro-play that absorbs vibration and recoil — keeping the Hub snug over time.

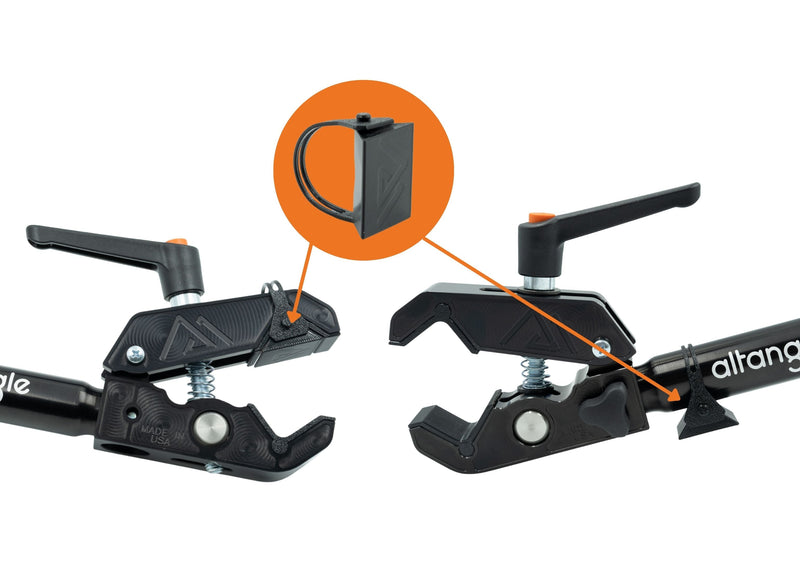

One shim, three jobs
Stores around the offset bar, drops into either jaw to clamp flat surfaces at any thickness, or shims smaller and odd-shaped structures.
Real leverage in awkward positions
Oversized 3/8″ ratcheting handle on the main clamp — designed for high-leverage tightening when you're reaching around a roll cage or wedged into a blind. Sized to never compete with the smaller adjustment knobs elsewhere on the unit. A smaller version of this handle also ships on the Pro Bar and underneath the Connect Deck.

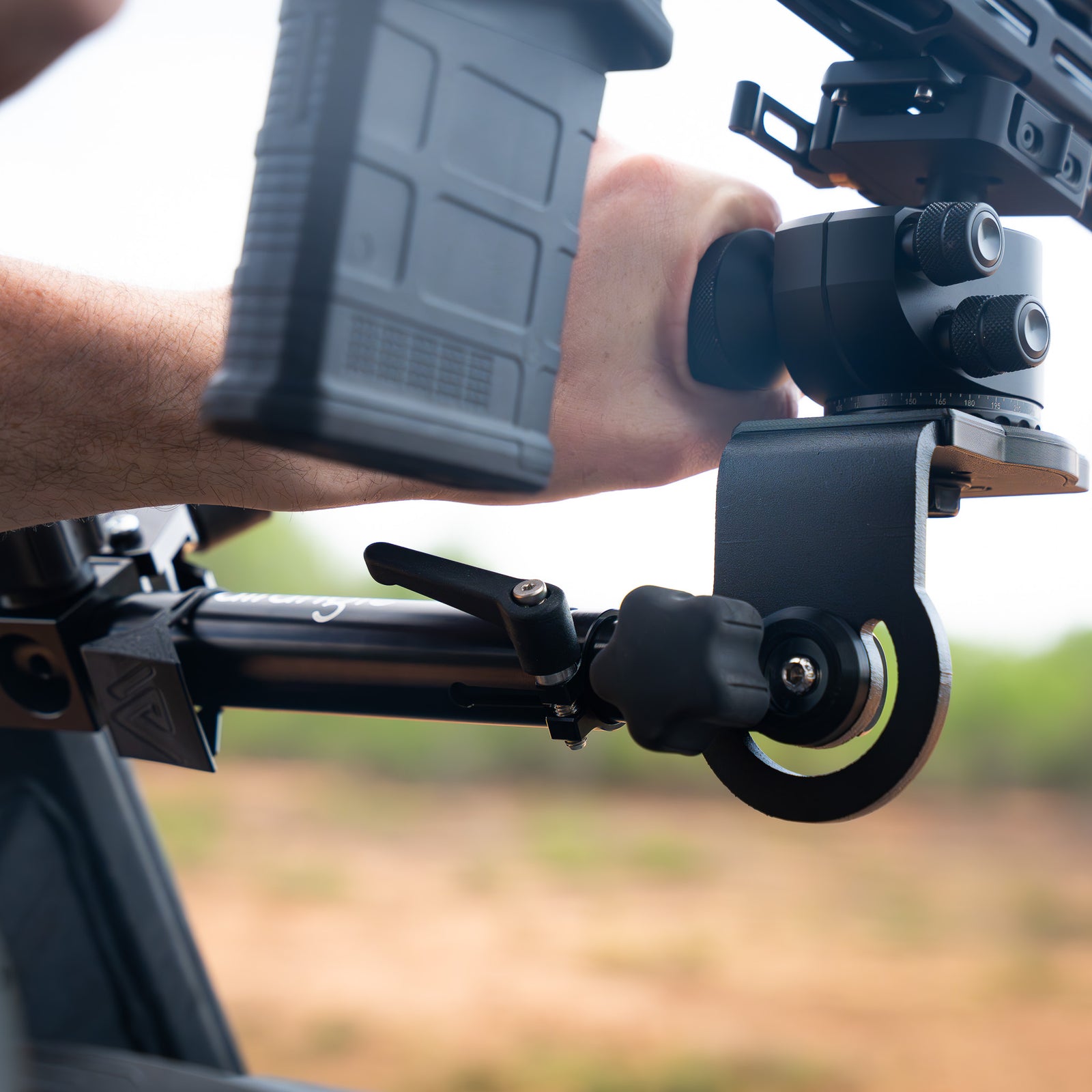

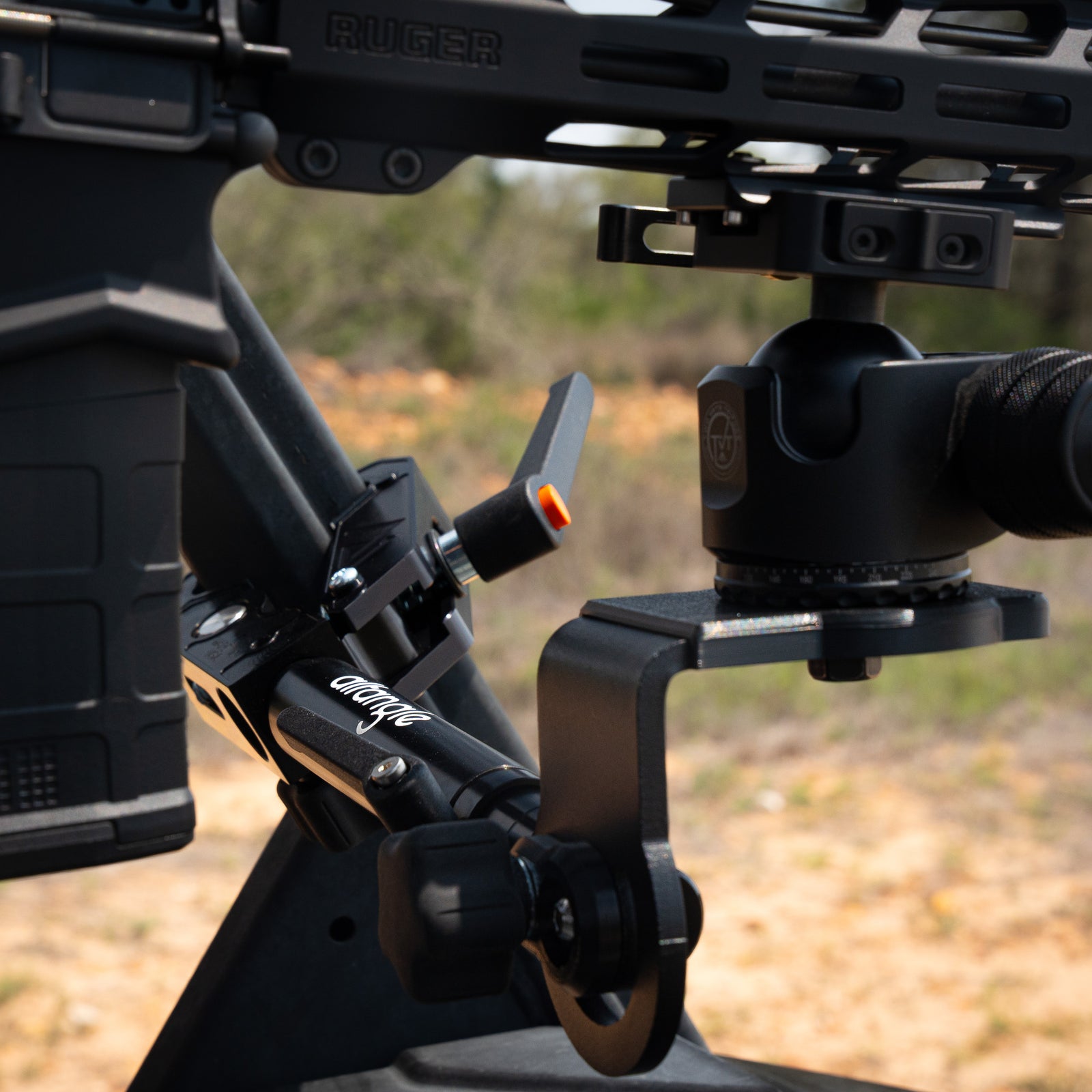

Adjust 290°, then lock it dead

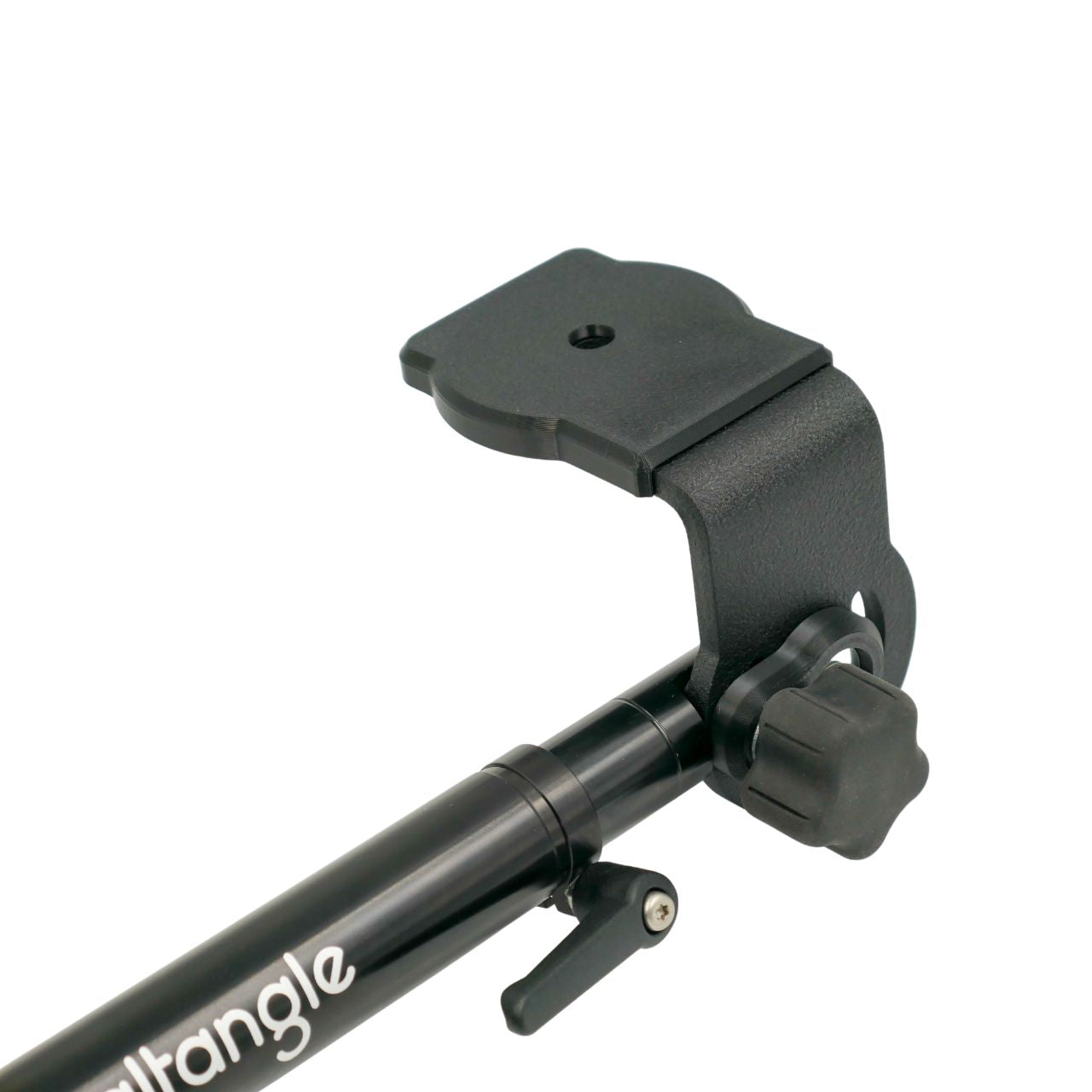

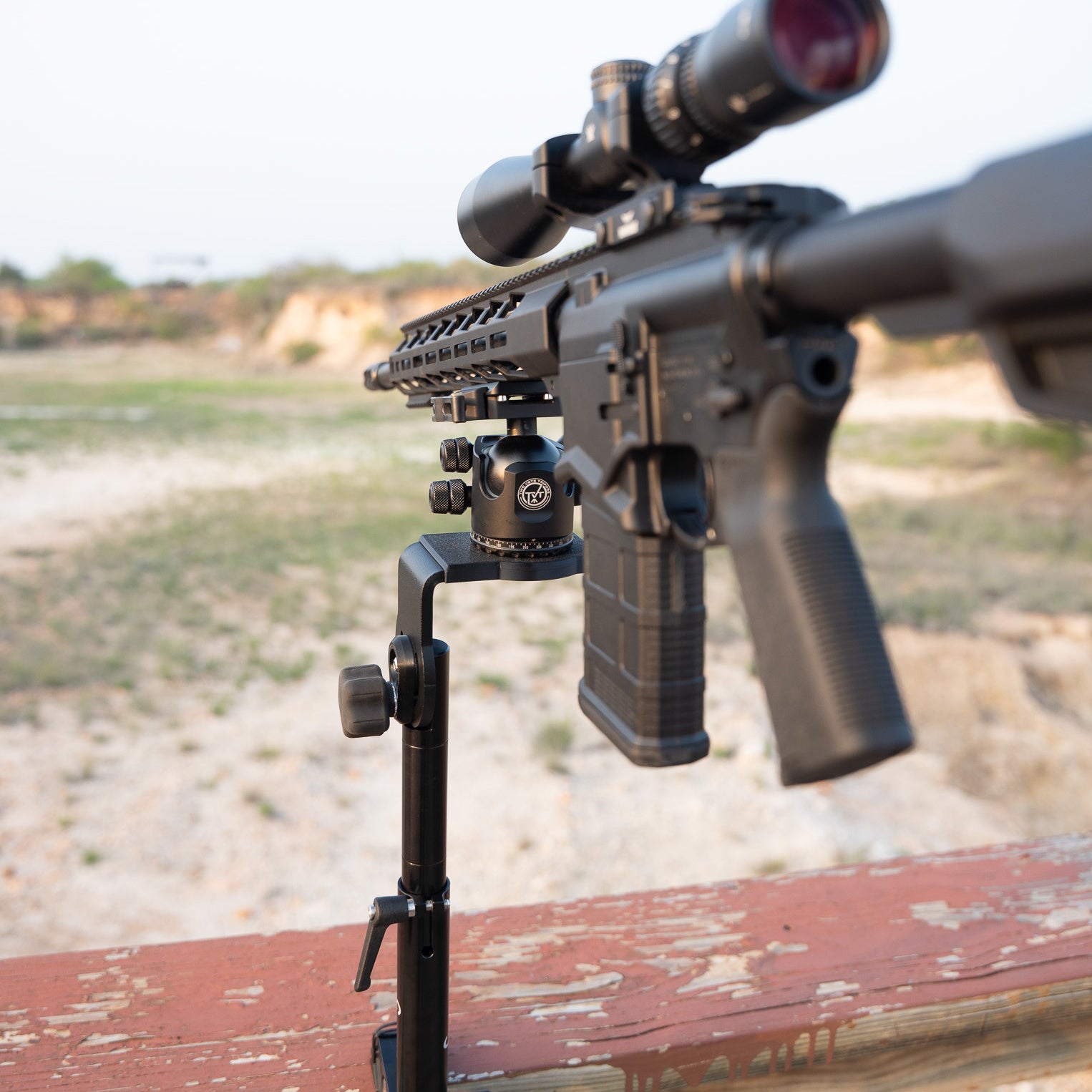

L-shaped bracket made from quarter-inch 5052 aluminum with a durable powder-coated finish. The primary pivot has its own friction resistance for fine positioning; the secondary lockout drops into a circular notch for zero-movement hold across roughly 290° of rotation. A 3/8″ through-hole on top accepts both 1/4″ and 3/8″ mounting hardware.
Damps vibration. Seats any ball head.
PETG top pad seats between your gear and the 2.8″ wide mounting platform — wide enough to accommodate virtually any standard ball head or mounting accessory. Engineered to dampen vibration and keep your mounting hardware from backing out under load and vibration.
Standard mount. Use your own or get one from us.
The ballhead pictured is shown for reference — not included with the Hub. The 2.8″ mounting platform features a centered 3/8-16 through-hole that accepts virtually any standard tripod head: Arca ballhead, panhead, fluid head, or any 1/4-20 / 3/8-16 threaded mount. Bring your own setup, or browse our compatible accessories.

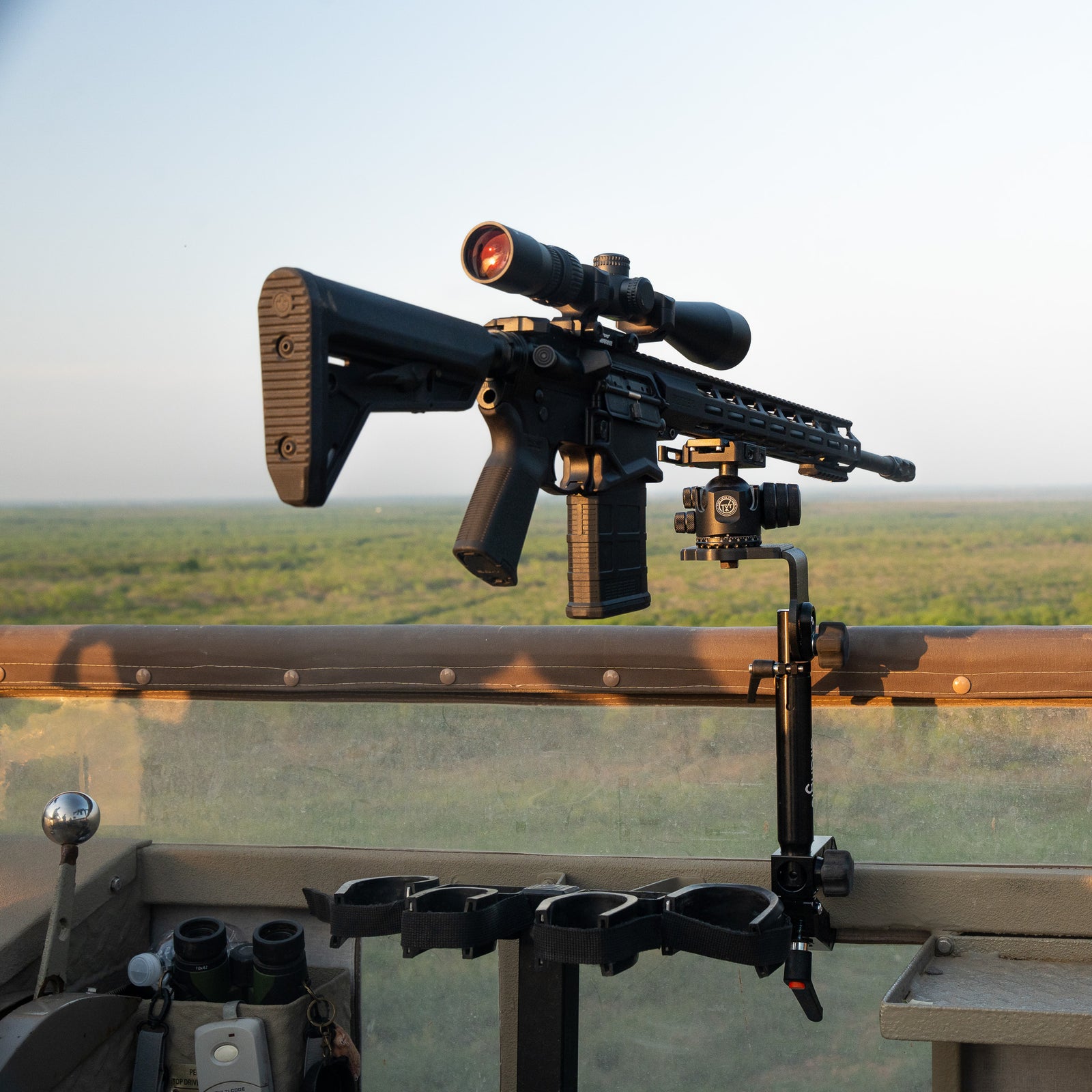

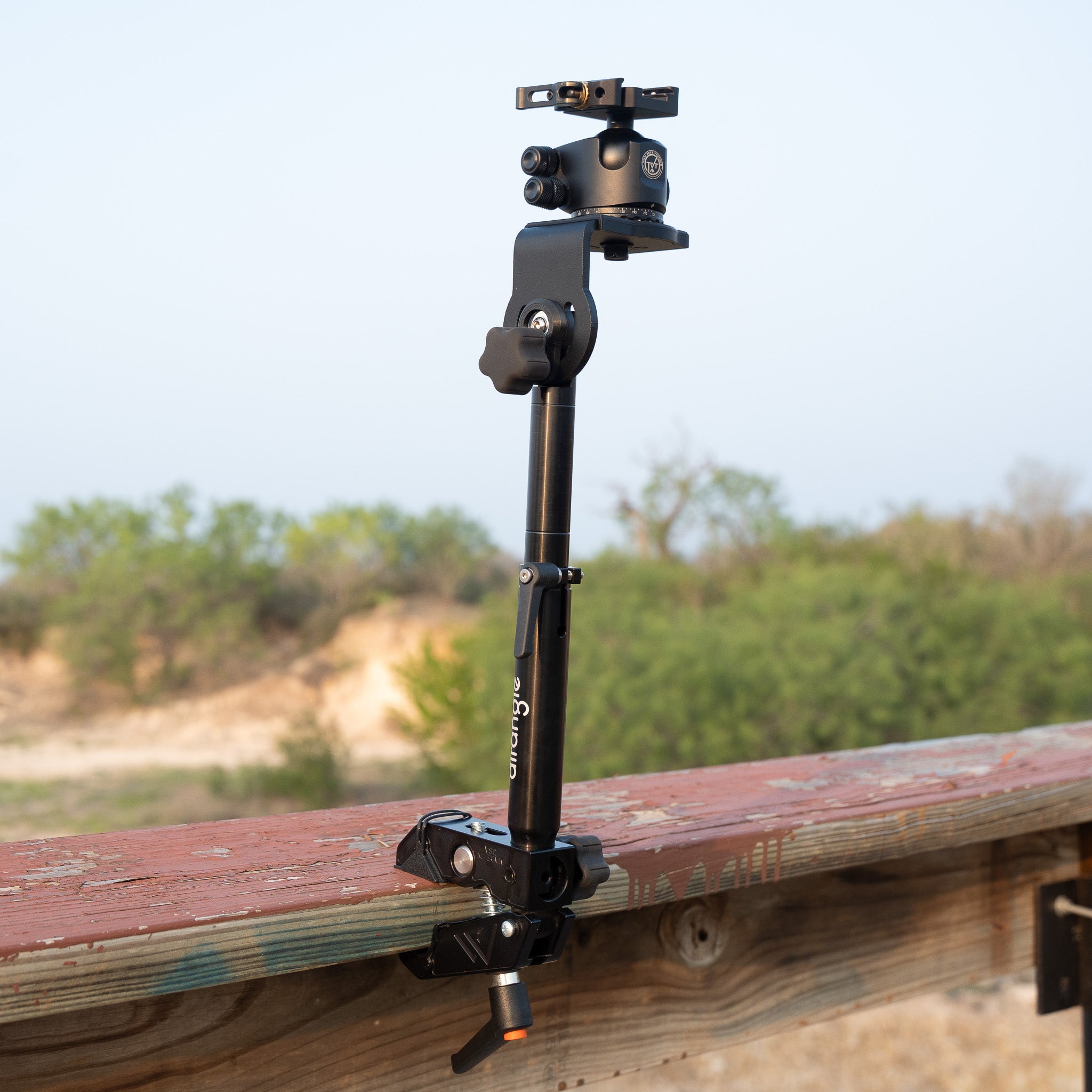

Built for Where You Actually Need It
One platform. Real environments. The structures already around you.

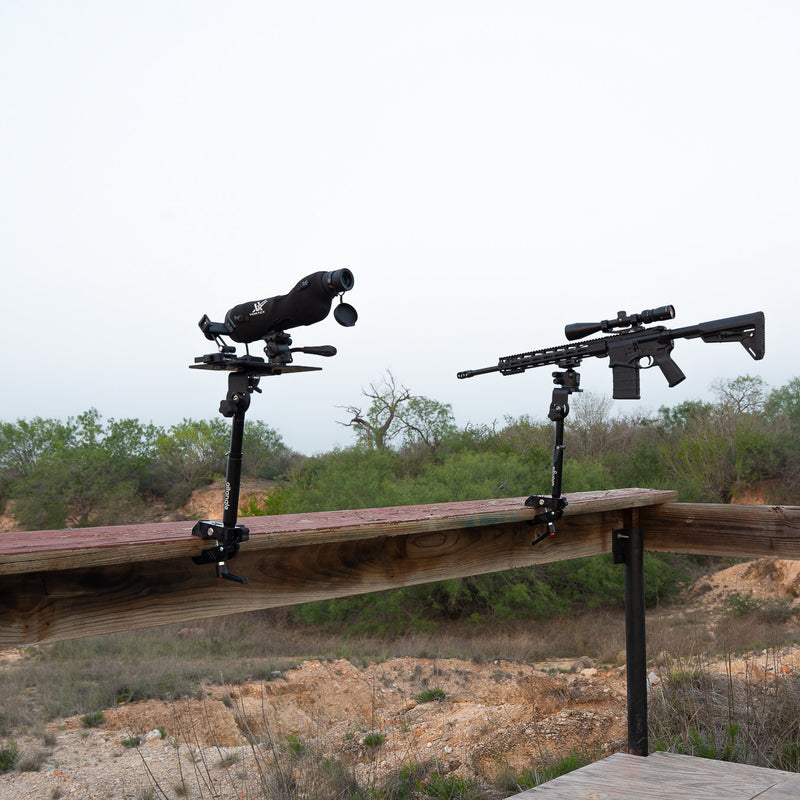

One Mount, Every Setup
The mounting platform up top stays the same — only the attachment changes. Drop on an Arca ballhead, a saddle rest, or a video head. Whatever the day calls for, your gear stays locked in.

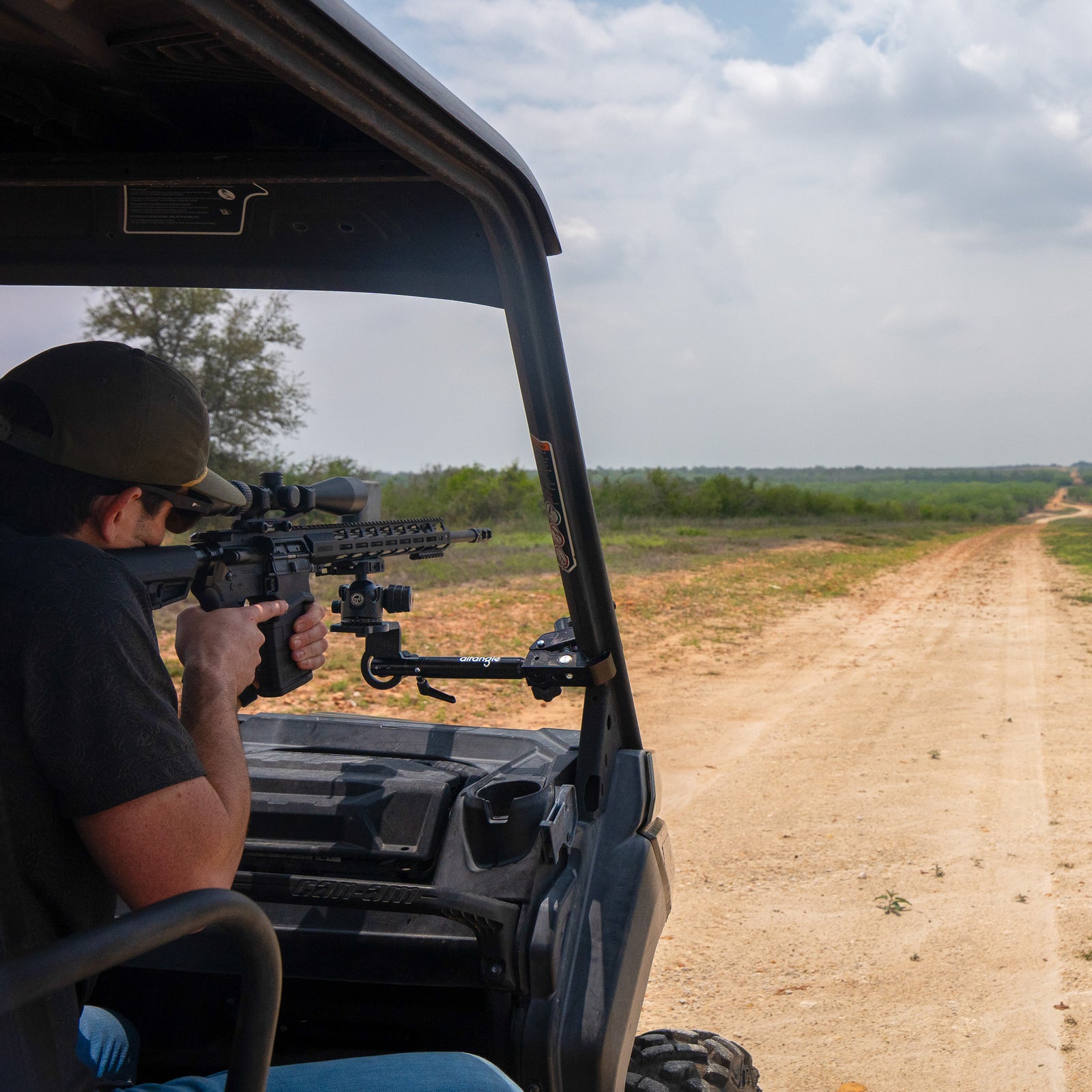

Locked-In, Not Just Steady

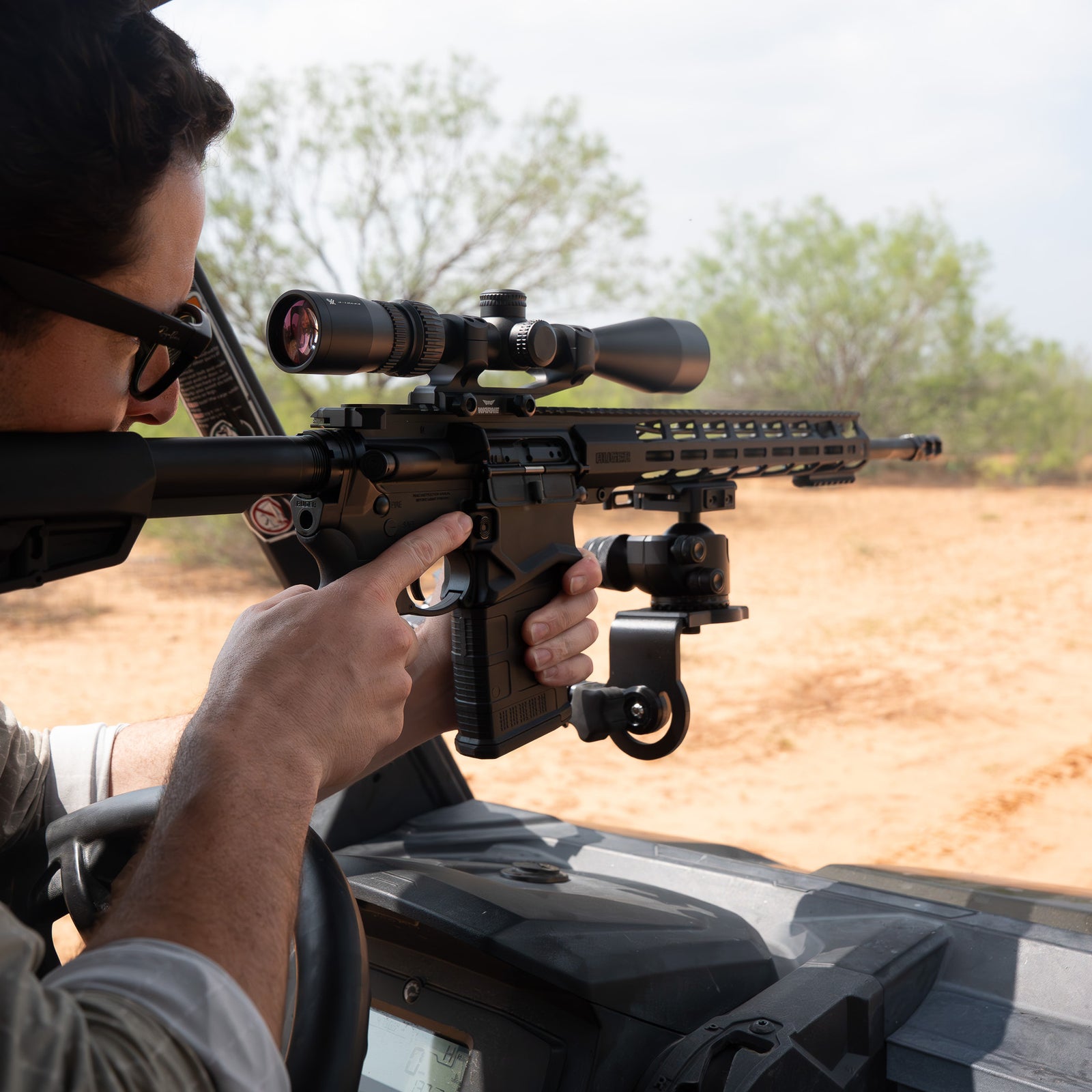

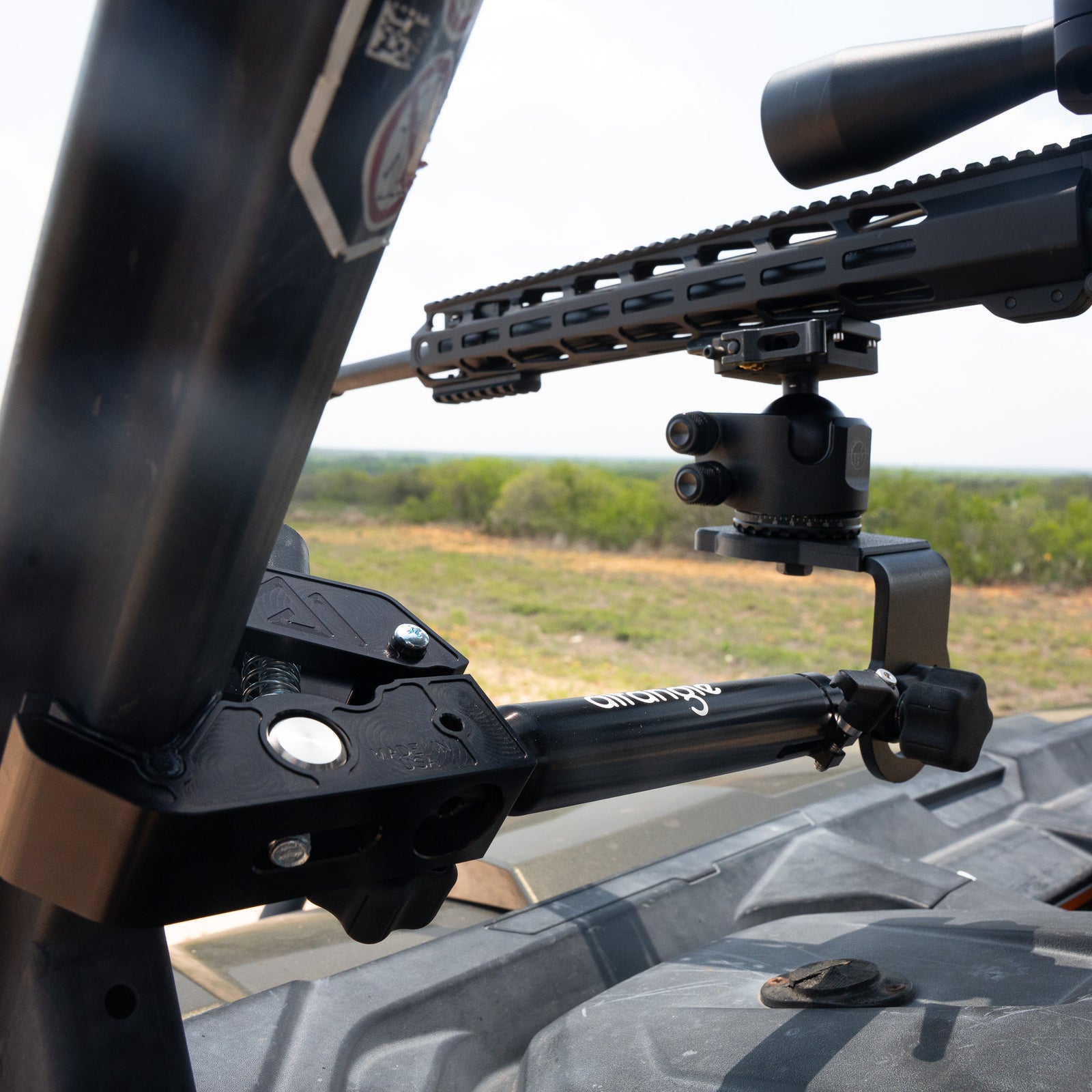

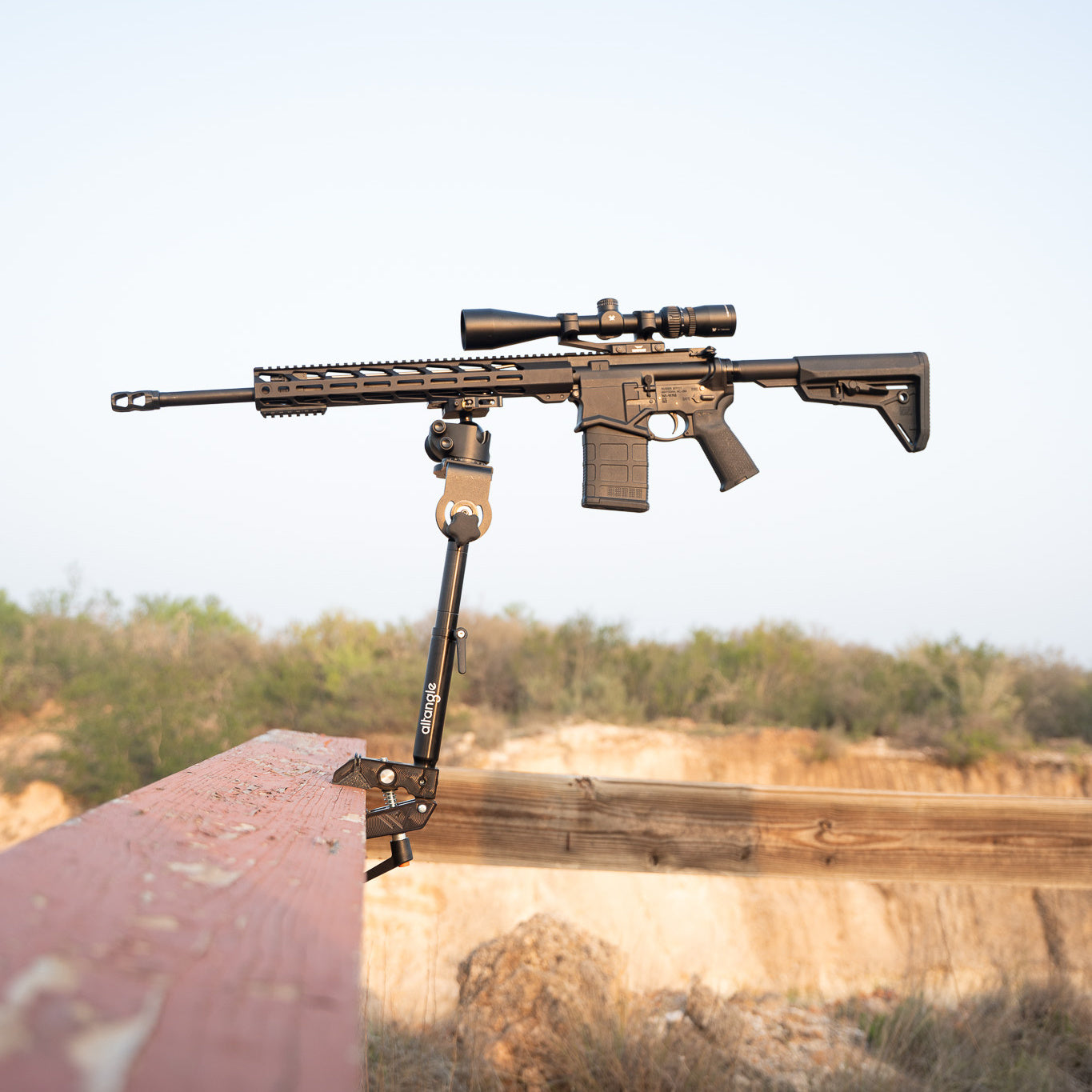

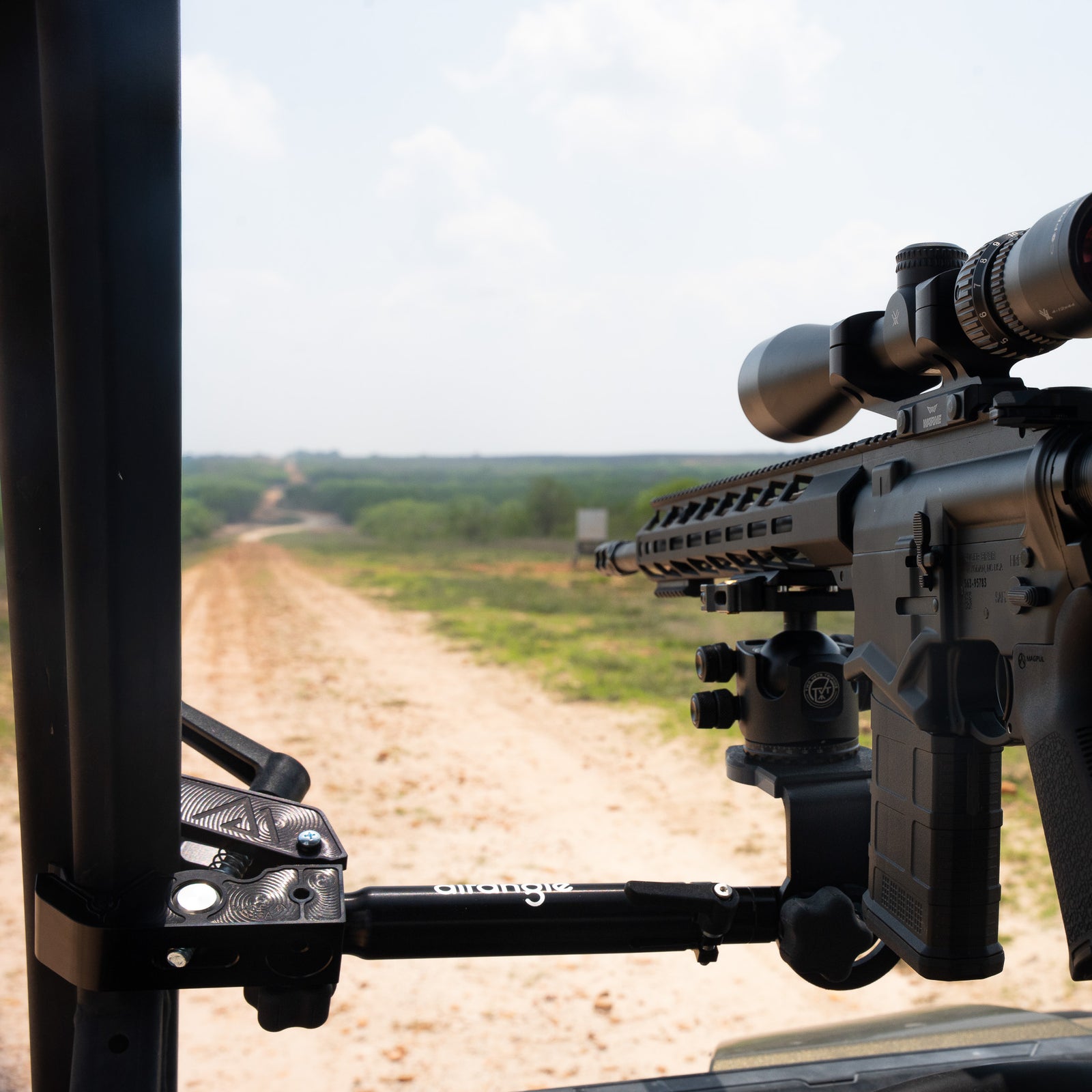

Range-bench stability from your roll bar, vehicle rack, or blind rail. With 500+ lb of clamping force, the Connect becomes part of the structure — no bolts, no tedious setup. Stays where you put it under recoil, vibration, and real-world use.
Glass For Hours, Not Minutes

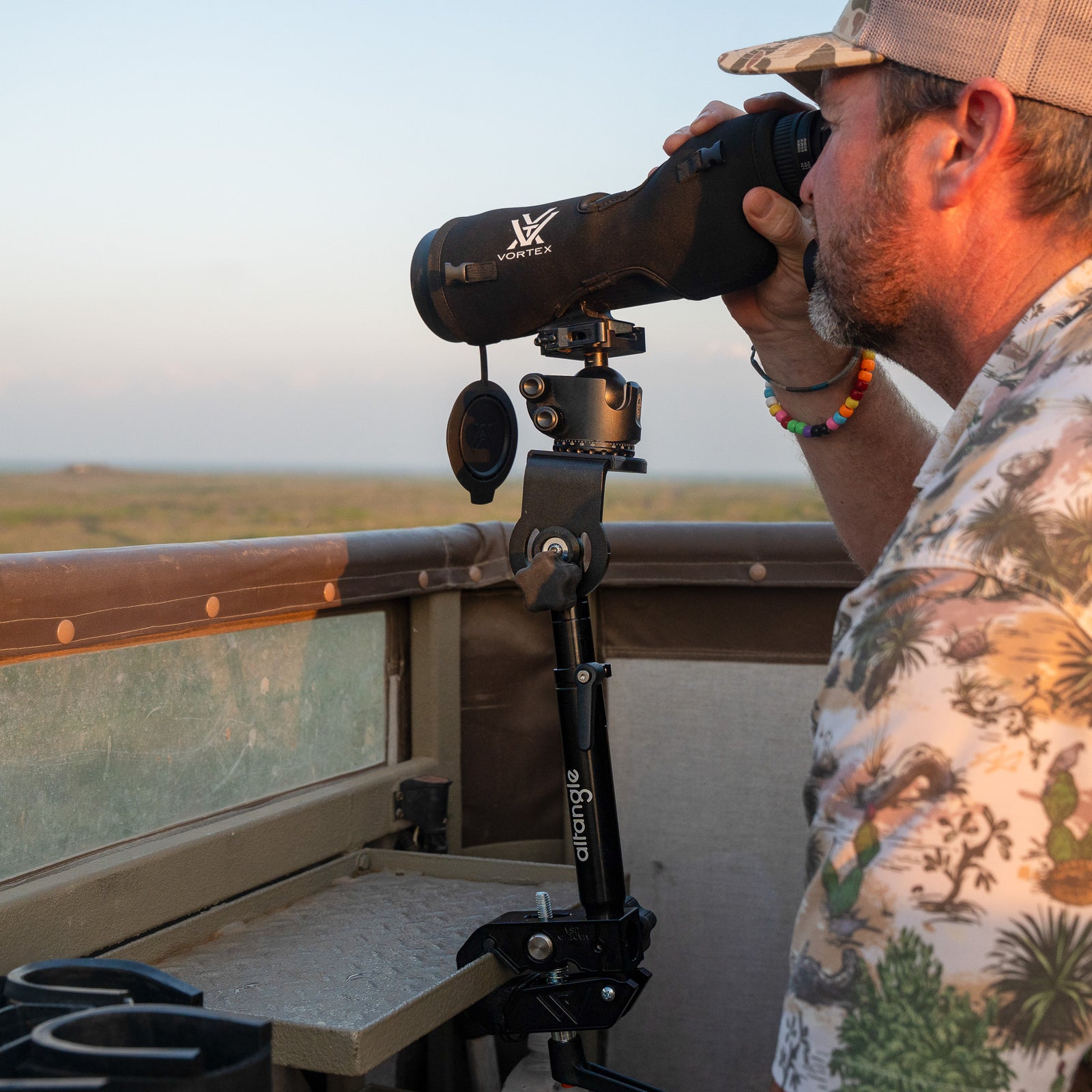

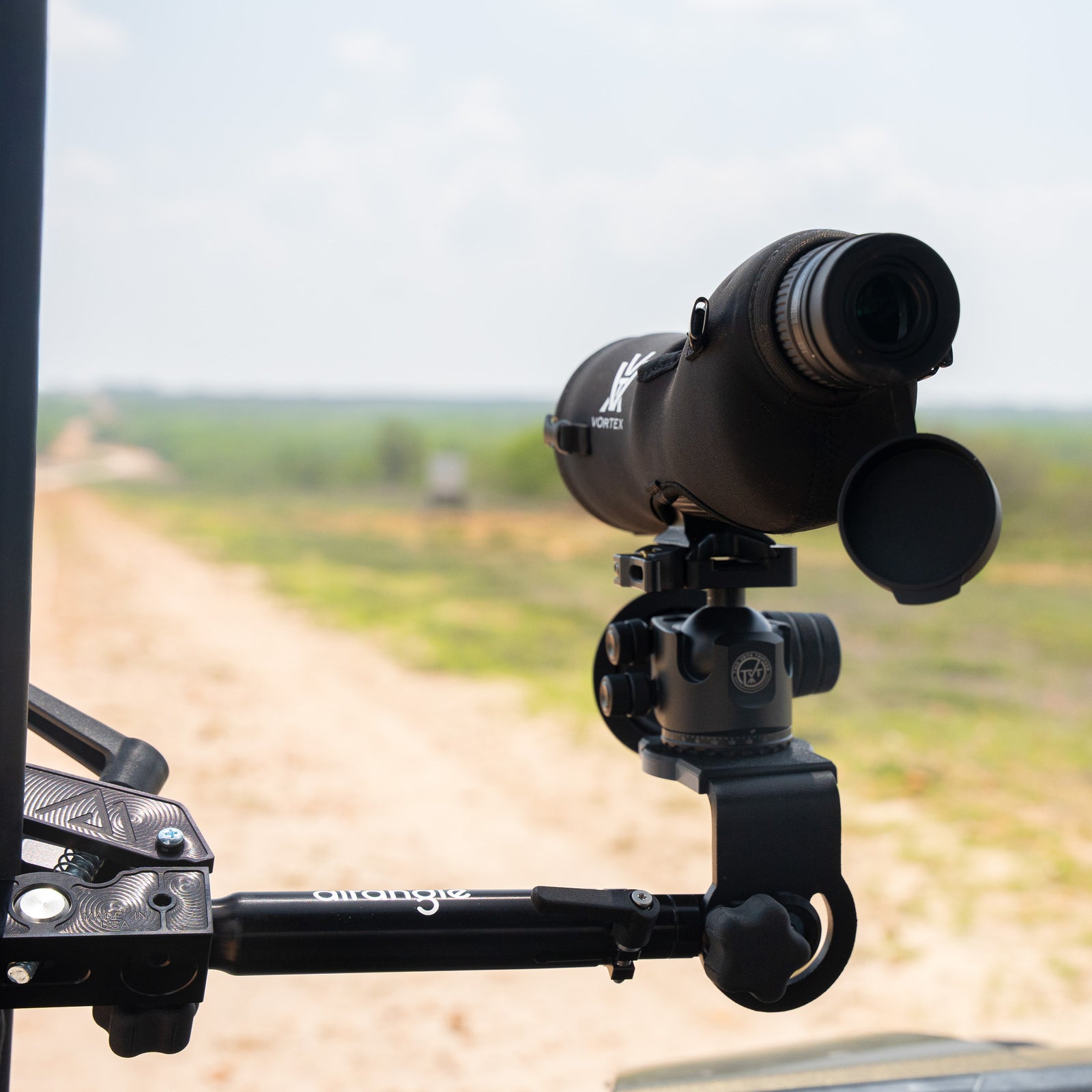

Locked-in optics platform that holds steady through the long sit. Spotter, binoculars, or long-lens camera — same clamp, same hold, anywhere you can reach.
Dedication without limitation
No bolts. No vehicle-specific kits. No tedious assembly. Open the jaws, clamp on, lock in. You're using your gear before they've opened their tripod.
